high quality water cooled copper induction heating machine for heating metal

1.Square steel,pipe
Billet material: Steel 45, 40Cr
Size: 20*20-150*150
Temperature:1100-1200 degree celsius
Heating power:100kw-1000kw
Working frequency:200Hz-8000Hz

2.Round steel rods
Billet material: Steel 45, 40Cr
Size: diameter 20*20-dia.200mm
Temperature:1100-1200 degree celsius
Heating power:100kw-2000kw
Working frequency:200Hz-8000Hz

3.Billet material: Steel 45, 40Cr
Billet shape: Rail, forks, rigging and other shaped pieces
Temperature:900-1150 degree celsius
Heating power:100kw-800kw
Working frequency:500Hz-8000Hz

4.Billet material: 60SiMn,50MnV
Billet Size: 50*8mm,63*10mm,75*16mm
Heating length: 100-500mm
Heating Temperature:850-950 degree celsius
Heating power:100kw-2000kw
Sensor:Oval,oblate inductor,opening sensor
Working frequency:100Hz-300Hz

5.Flat steel plate heating
Billet material: Steel 45#, 40Cr
Billet specifications: T8-T30
Temperature:800-1000 degree celsius
Heating power:120kw-400kw
Working frequency:2500Hz-8000Hz

Technical parameters of WZP-160 induction heating machine

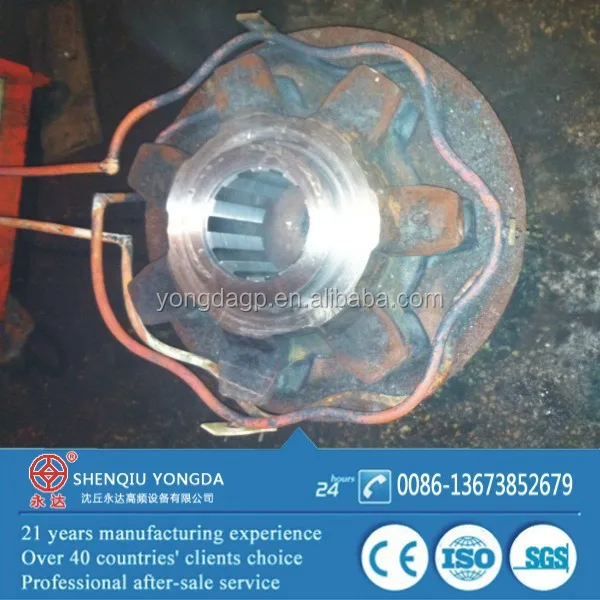

Usage of induction heating coil:gears hardening and bars forging

Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to Research & Development,production of high frequency induction heating machine, medium frequency induction heating equipment,supersonic frequency induction heating machine,induction forging machine, induction hardening machine, adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions. We have international trade office in zhengzhou. East to international airport (CGO), besides, high way, high speed rail,transport is very convenient.

Company products:
Medium frequency induction heating machine IGBT and KGPS SCR
High frequency (Super audio ) induction heating machine
Induction hardening machine, induction forging machine,induction brazing machine, induction annealing furnace,
Electromagnetic induction heating equipment,Induction melting furnace ;
CNC hardening machine tool,Automatic feeding steel rods machine,
Round bar,steel pipe induction hardening and tempering equipment
Concrete pump pipe dedicated quenching machine,Hydraulic cylinder cladding equipment;
Closed cooling tower,etc.

1. Reply your inquiry within 24 working hours.
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference.
5. Competitive price ,compare with the same industry.
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support.

Packing for high frequency induction heating machine:
Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
