Home > Products > Electric Power Distribution System > Generator Set

Famous Brand Yongda WZP-120 Round brass bar induction hot forging

FOB Price:

US 2000-9800 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Year

Port:

Shanghai, Qingdao,Tianjin, Guangzhou or as you request

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,cash

Brand:

Yongda

Products Model:

WZP-120

Products Details
Company Profile

Quick Details

Brand Name: Yongda

Model Number: WZP-120

Place of Origin: Henan, China (Mainland)
Condition: New
Voltage: 320-420V
Power(W): 70KW
Dimension(L*W*H): generator 665*400*730mm | transformer 660*490*435mm
Weight: 48kgs,66kgs
Certification: ISO9001:2000
Warranty: one year
After-sales Service Provided: Engineers available to service machinery overseas
name: induction hot forging
usage: forging brass bar, bolts, steel billets
Input current of heater: 6-120A
Oscillation frequency of heater: 10-50khz
coils material: coppe tube
insulating material: refractory cement ,glass pipe
nature of us: 20 years manufacturer
cooling method: water pool/tank
transport: by sea LCL or by air port to port ,DHL,Fedex

Packaging & Delivery

Packaging Details: 1.Wooden cases(plywood) or carton for packing induction hot forging machine, good for long distance transport 2.Total volume 1 CBM, 188KG
Delivery Detail: 5-7 days after 30% advance payment

Specifications

Famous Brand Yongda WZP-120 Round brass bar induction hot forging

Product Description

Brass bar induction hot forging

Technial parameters of WZP-120 induction hot forging machine

Model	WZP-120
Work power	3 phase 380V+/-10%, 50-60HZ
Input voltage	320V-420V
Input current	6-120A
Input power	10-70KW adjustable stepless
Oscillation frequency	10-50KHZ
Size of generator	665400730mm
Size of transformer	660490435mm
Weight of generator	48kgs
Weight of transformer	66kgs
Cooling water pressure	0.3 MPA

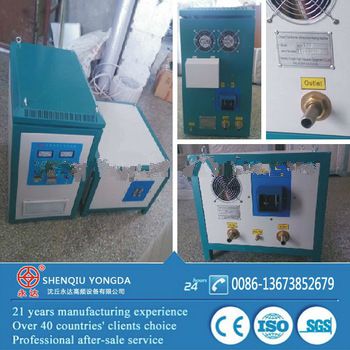

WZP-120 yongda brand induction hot forging machine

Applications of induction hot forging machine

1, through thermoforming all kinds of standard parts, fasteners, machinery parts, hardware tools, straight shank twist drill of hot forging, hot rolling, metal annealing. Such as: tensile steel; wire, nail wire heating; stainless steel annealed, rose type.
2, heat treatment various types of hardware tools, electric, hydraulic, pneumatic components, automotive, motorcycle parts and other mechanical parts of the surface of the metal, the hole, partial or total quenching. Such as: hammer, knife, scissors, pliers and all kinds of shafts, cams, sprockets, gears, valves, ball stud, a large machine tool guide, ductile iron quenching.
3, various types of brazing carbide blade, turning, milling, planing, reamer, diamond saw blade, serrated welding; grinding, drilling, cutting welding; brass, copper, stainless steel pot, etc. hybrid welding of metallic materials.
4, metal melting: melting gold, silver and copper.
5, other areas of plastic pipe heating cable, heating wire coating; food, beverage, pharmaceutical industry, the use of aluminum foil.

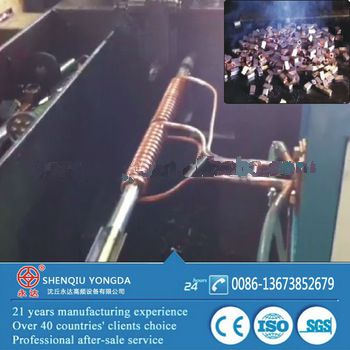

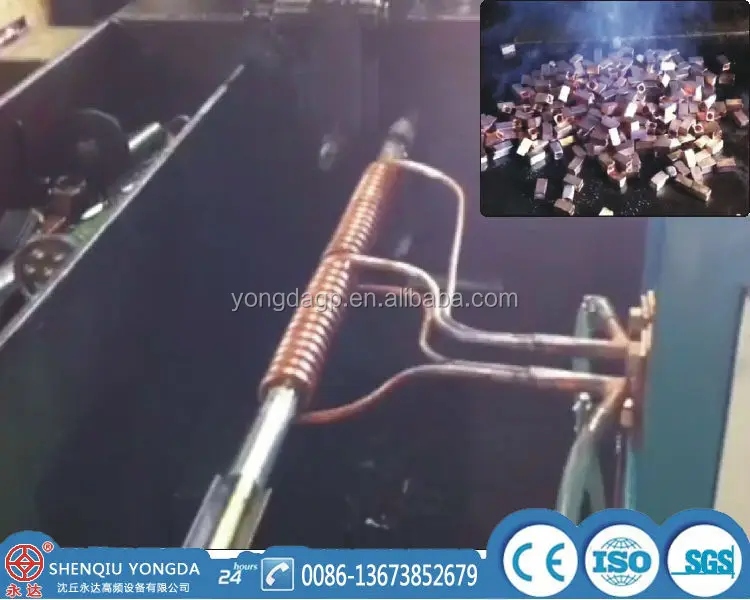

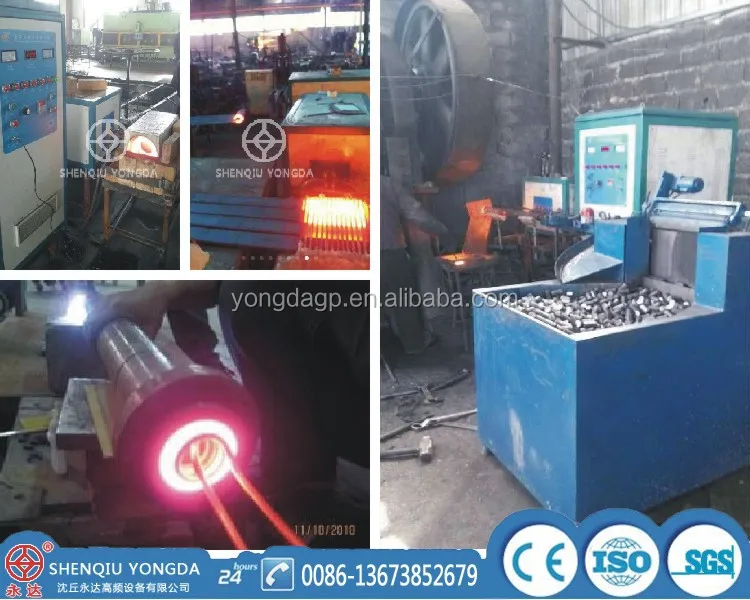

Induction hot forging pictures

Features of Yongda hot forging machine
1, small size, light weight, easy installation, easy operation.
2, high efficiency, saving energy obviously, high-frequency energy-saving equipment than the traditional 60%
3, safe and reliable, no million-volt high-pressure, very safe for the operator.
4, the frequency bandwidth to meet the different parts of brazing, heat treatment, forging before heating.
5, a unique cooling system, ensure that the equipment 24 hours of continuous work.

Induction hot forging coils sample

Packaging & Shipping

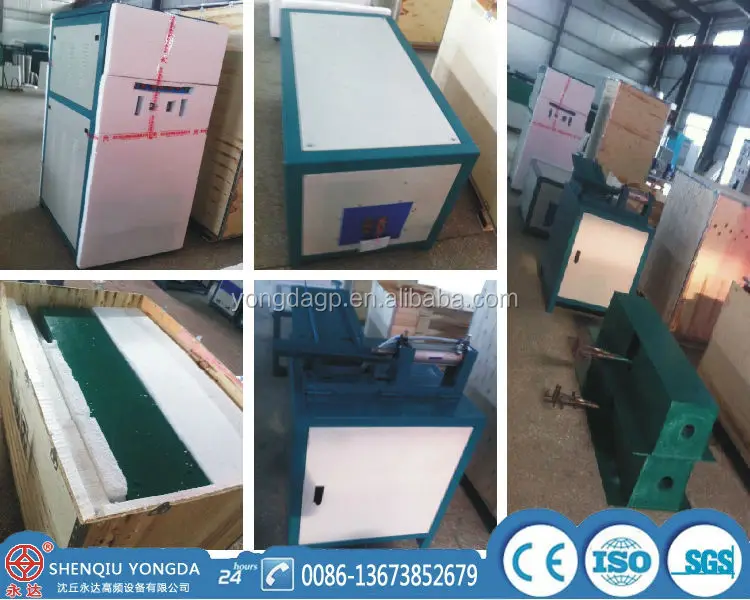

Packing for induction hot forging machine

1.Wooden cases (plywood) or carton,as you request.

2. Inside,will be filled with plastic foam,for waterproof and shockproof.

3.Accessories: induction coils,foot switch and installing and operating instructions

4. Packing size: generator 830*500*880 transformer 830*600*550mm

Shipping: by sea LCL(less than container load) or by air.

Geneartor, transformer, automatic feeder, induction heating coils cover nice
