Brand Name: Yuanda
Model Number: YGL
Place of Origin: Henan, China (Mainland)
Condition: New
Type: Natural Circulation
Usage: Industrial
Structure: Fire Tube
Pressure: Low Pressure
Style: Vertical
Fuel: Coal-fired
Output: thermal oil, hot oil
Dimension(L*W*H): Depend
Weight: 5~50ton
Certification: ISO9001:2008
After-sales Service Provided: Engineers available to service machinery overseas
Rated thermal power: 350kW, 500kW, 700kW, 1000kW, 1200kW, 1400kW, 2000kW
Design pressure: 10bar
Medium: Thermal fluid oil
Design fuel: solid fuel, coal, wood, firewood, wood logs, pellets
Thermal efficiency: >70%
Application: plywood, food, textile, paper, plastic, rubber industry
Visit Factory: Welcome anytime
Installation & commissioning service: Available
Product name: coal burning boiler heater furnace heating hot oil circulation system
vertical type coal burning boiler heater furnace heating hot oil circulation system

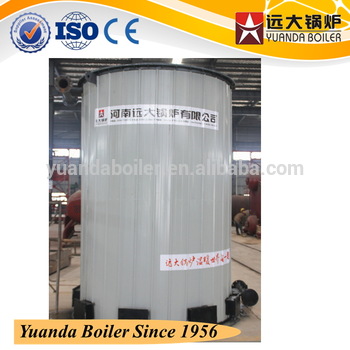

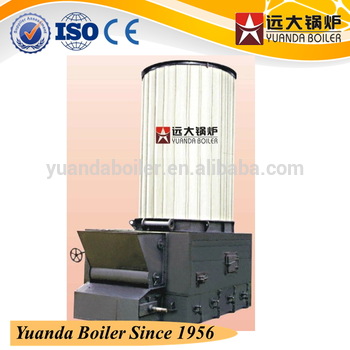

Product name | YGL low pressure single drum vertical structure fix grate manual operation coal thermal oil boilers/ heaters |
Product description | Powered by circulation pumps, heating as medium, organic heat transfer oil flow out from boiler into equipments which need heat energy, transferring heat energy, and then flow back to boiler proper. The organic thermal oil flow through the whole system and transfer heating energy to heat the equipment. |
Title | vertical type coal burning boiler heater furnace heating hot oil circulation system |
Model | YGL-120MA,YGL-230MA,YGL-350MA,YGL-470MA,YGL-700MA,YGL-930MA,YGL-1200MA,YGL-1400MA |
Rated thermal power | 350kW, 500kW, 700kW, 1000kW,1200kW, 1400kW, 2000kW |
Rated working pressure | 10Bar |
Max. working temperature | 340°c |
Design fuels | coal, charcoal, anthracite coal, coal powder, pulverized coal, lignite coal charcoal |
Features | 1.Low pressure but high temperature, safe, high efficiency and saving energy. 2.Equipped with complete operation control and safe monitoring device, easily to be installed, operation and maintenance. 3.Thermal fluid oil runs in the whole working system, without contacting with airs, no emissions, no pollution, less heat loss, long working life, saving fuels and low running cost. 4.It can meet the requirement of different machines which needs various temperature in different processing manufacture. 5.It can control and adjust the temperature precisely, works stable, and widely applied in many industries and plants. |
Appllication | 1.Chemical Industry -- polymerization industry ,oil industry, reaction tank,distillation ,enrichment 2. Plastic industry --- plastic and squeeze to finalize the design 3. Textile industry -- resin stenters ,dyeing machine and the dry room ,high temperature machine,roller. 4.Rubber industry - rubber vulcanization heating 5.Food industry -- cooking dry,vegetable oil refining 6.Wood industry -- heating to finalize the design of chipboard sandwich plate ,wamu board, fiber 7.Paper industry-multi-layer cardboard of packed carton box ,dying and desiccation 8.Others-heating of metal electroplating slot ,coating condensation ,drying ,distillation of pharmaceutical industry, reduction ,concentration,dehydration,airconditioning industry.etc |
Boiler main part |
1 set |
Forced fan | 1 set |
Induced fan | 1 set |
Meters control system | 1 set |
Circulation pump | 1 set |
Oil filling pump | 1 set |
Expansion tank | 1 set |
oil storage tank | 1 set |
Oil & gas separator | 1 set |
Filter | 1 set |
Chimney | 1 set |
Gas flue | 1 set |
Dust collector | 1 set |
Air preheater | 1 set |
Technical datas form of YGL low pressure single drum vertical structure fix grate manual operation coal thermal oil boilers/ heaters is as follows,
|
YGL- 120MA |
YGL- 240MA |
YGL- 350MA |
YGL- 500MA |
YGL- 700MA |
YGL- 1000MA |
YGL- 1200MA |
YGL- 1400MA |
YGL- 2000MA |
|
Rated Thermal Power(Kw) |
120 |
240 |
350 |
500 |
700 |
1000 |
1200 |
1400 |
2000 |
|
Efficiency % |
≥70 |
≥75 |
||||||||
Design Pressure (Mpa) |
1.1 |
|||||||||
Max. Working temperature(oC) |
340 |
|||||||||
Circulation Oil Volume(m3/h) |
12.5 |
20 |
30 |
40 |
60 |
80 |
100 |
100 |
100 |
|
Pipes connection diameter DN |
50 |
65 |
100 |
125 |
150 |
|||||
Installed capacity (kW) |
6.7 |
10 |
14.1 |
14.1 |
23.5 |
29 |
40 |
40.7 |
48.7 |
|
Fuels |
Coal, wood, firewood, wood logs |
|||||||||
Dimensions (mm) |
D |
1150 |
1300 |
1700 |
1700 |
1960 |
2050 |
2160 |
2290 |
2620 |
H |
2385 |
2650 |
3060 |
3475 |
3805 |
4415 |
4760 |
5445 |
6430 |
|
Weight (Kg) |
1560 |
1960 |
3520 |
3800 |
4900 |
6100 |
7500 |
8820 |
13800 |
