Blast Freezer PU Sandwich Panel

FOB Price:

Get Latest Price

Min.Order Quantity:

100 Square

Supply Ability:

10000 Square per Meter/Square

Port:

QINGDAO

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

HONOR

Products Model:

PU Sandwich Panel

Products Details
Company Profile

Quick Details

Brand Name: HONOR

Model Number: PU Sandwich Panel

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: plastic bubble package with carton protection at corners
Delivery Detail: Shipped in 15 days after payment

Specifications

Blast Freezer PU Sandwich Panel

Create A Fresher World (+86 15206878202)

Product Description

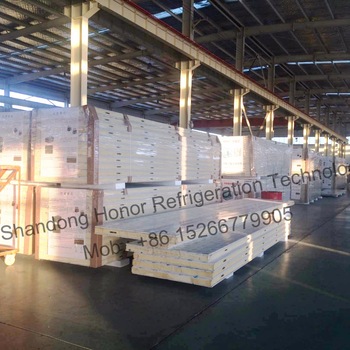

200mm Blast freezer PU sandwich Panel

Application

PU Sandwich panel, composed of 2 layers of colored steel sheets, and with polyurethane as filling material. It is widely used in factory buildings, storages, exhibition halls, gymnasiums, freezing stores, purifications workshops, etc, which features temp-keeping, heat insulation, weight-bearing, weatherproof with the rich colorfulness and good appearance.

Features

High strength, wear resistant, oil resistant, shock absorption, heat preservation;

200mm Blast freezer PU sandwich Panel

Parameters

Product name Polyurethane(PU) Sandwich Board Thickness upper layer 0.3-0.5mm core material 50mm, 75mm, 100mm, 120mm,150mm,200mm,250mm bottom layer 0.3-0.5mm Effective Width standard 960mm, 1160mm other can be customized Length can be customized, less than 12m Density 40+/-2 kg/m3 Weight depends Color any(generally white,blue,red,grey,) Temp tolerance -50-60℃ Fire resistance level B3, B2, B1 (optional) Surface profile flat,corrugated,big rib, small wave, embossed Compression bearing ≥0.2Mpa Material upper layer PPGI(prepainted galvanised steel)color steel / SS sheet inner layer PU foam(injected,not glued) bottom layer PPGI(prepainted galvanised steel)color steel / SS sheet Parts Eccentric hook used for connection of panel Film covering for protecting the surface layer Heat transfer coefficient 0.023+0.001W/M*K Characteristics heat insulation energy-saving 100mm width can keep temp at 0℃(suit for fresh keeping) 150mm width can keep temp at -18℃(suit for cold storage) 200mm width can keep temp at -38℃(suit for freezing) water resistance and sound proof weather proofing fire retardant level:C high strength and bending resistance easy/quick installation and dismantling,labour cost saving light weight compared to traditional stone or plaster panel safe and green,good appearance,without formaldehyde Lifespan can reach 15-20 years

We are a Chinese manufacturer specialized in Slaughterhouse and Cold storage room production for more than 10 years, we have undertaken many Slaughterhouse and Cold storage room projects overseas;

we have two plants, one for cold storage room and the other for Slaughterhouse.
For cold room, we have a complete production line including the PU panel, compressor, condenser, air cooler, and all kinds of cold room doors;
For Slaughterhouse, we have a complete production line including Cattle leading machine, reverse case for stunning, killing & bloodletting, Pre-peeling, hydraulic dehider, evisceration, elevator, washing/ sorting/ weighing/ warehousing/ synchronous hygiene inspection machinery;

To sum up, we can provide slaughterhouse and cold room turnkey projects for you, with high quality and reasonable price.
