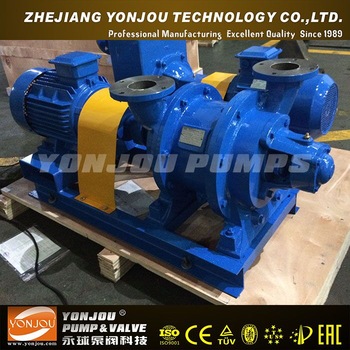

SK Water Ring Vacuum Pump SK Water Ring Vacuum Pump SK Water Ring Vacuum Pump

SK Water Ring Vacuum Pump

FOB Price:
US 150-7000 / Piece
Min.Order Quantity:
1 Piece/Pieces
Supply Ability:
250 Piece/Pieces per Month
Port:
Shanghai/Ningbo
Place of Origin:
Zhejiang, China (Mainland)
Payment Terms:
L/C,T/T,Western Union
Brand:
YONJOU
Products Model:
SK
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: YONJOU

    Model Number: SK

    Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

  • Packaging Details: standard export wood case packing vacuum pump price
  • Delivery Detail: normally 7 dys according to the quality

Specifications

SK Water Ring Vacuum Pump



Specifications



Liquid Ring Vacuum Pump, mainly used in air and gas trans.
1. High vacuum
2. Small volume
3. Double stage
4. For heavy work



Operation Principle



Summarize

  • Water/ Liquid ring vacuum pump is used to pump air and other non-corrosive, do not dissolve in water, solid particles of free gas, airtight containers in order to obtain a higher vacuum.

Main Usage

  • It has been widely used in food, textile, pharmaceutical and chemical and metallurgical industry in the area of electronic vacuum evaporation, vacuum enrichment, the resurgence of vacuum, a vacuum impregnation, vacuum drying and vacuum smelting.

Data Table

>>> Model Significance:

          2SK two stage vacuum pump = 2 sets SK vacuum pump connected in series.

             Example: 2SK-6-P1

             2SK ------- Double impeller liquid ring vacuum pump

             SK -------  Single impeller liquid ring vacuum pump

              6 --------- largest gas (m³ / min)

              P1 ----------- equipped with an air jet



  • Application: Air, Gas

  • Largest capacity: 1.5 m³/min ~ 120 m³/min

  • Vacuum degree: 2SK (-735mmHg) > SK (-700mmHg)

  • Motor power: 4 kw ~ 185 kw

  • Caliber: 10 ~ 300 mm

  • Max medium temperature: 70 C

  • Material: Cast iron, Aluminium alloy, Stainless steel



Model Capacity
(m3/min)
Ultimate vacuum Power
(kW)
Speed(r/m) Supplied water amount (L/min) Caliber
Max when the suction pressure is 0.093Mpa, it is no less than mmHg MPa
2SK1.5 1.5 0.9 -730 -0.097 4 1440 10-15 φ40
2SK-3 3 2 -735 -0.098 7.5 1440 15-20 φ40
2SK-6 6 4 -735 -0.098 15 1460 25-35 φ70
2SK12 12 8 -735 -0.098 22 970 40-50 φ100
2SK30 20 14 -735 -0.098 45 740 60-80 φ125
2SK30 30 20 -735 -0.098 55 740 70-90 φ125



Performance Curve



Installation Dimension







Pump Applications
