Diesel Engine Irrigation Pump High Flow Diesel Water Pump Set High Capacity Engine Fire Pumps

Diesel Engine Irrigation Pump High Flow Diesel Water Pump Set High Capacity Engine Fire Pumps

FOB Price:
US 300-3500 / Set
Min.Order Quantity:
1 Set/Sets
Supply Ability:
500 Set/Sets per Month
Port:
NINGBO
Place of Origin:
Zhejiang, China (Mainland)
Payment Terms:
L/C,D/P,T/T,Western Union
Brand:
YONJOU
Products Model:
250S-50/4135AG
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: YONJOU

    Model Number: 250S-50/4135AG

    Place of Origin: Zhejiang, China (Mainland)

  • Theory: Centrifugal Pump

    Structure: Multistage Pump, High Capacity Engine Fire Pumps

    Usage: Water

  • Power: Electric

    Standard or Nonstandard: Standard

    Fuel: Diesel

  • Pressure: High Pressure

    Application: Maritime

    Material: Cast Iron/Stinless steel

  • Certificate: CE/ISO9001:2000/SGS

    Color: Any

Packaging & Delivery

  • Packaging Details: packing :standard export plywood case weight and demension are according to different High Capacity Engine Fire Pumps
  • Delivery Detail: Normally 15days according to quantity

Specifications

 High Capacity Engine Fire Pumps







We got diffreent series diesel engine and can  make product customization for clients.





Diesel Engine Brand

International Brand: CUMMINS, DAEWOO, VOLVO, MAN, PERKINS, MITSUBISHI,JOHN DEERE, DEUTZ, MTU, CATERPILLER, YAMAHA, IMC, IVECO

Chinese Brand: WEICHAIYUCHAISDECFAWQUANCHAICHANGCHAIXINCHAIDFACDCDBEINEIHBE.



Baseplate Type

Cart Type, Mobile Trailer Type, Auto Truck Type, Totally Enclosed Mute Type.



Control Mode

Manual Start, Button start, 3G Remote start, Intelligent and Multi-function operation.











Pump Description



Example for Self Priming Pump

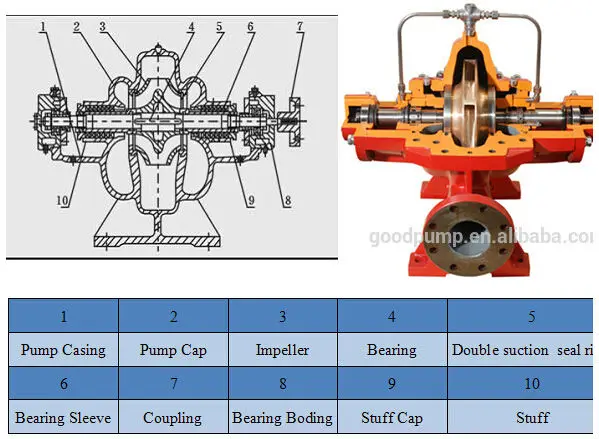

>>>Structure Drawing (Packing seal or Mechanical seal)



>>> Overview

Pump with copper impeller can pump light oil. Special ones can transport liquids with impurity and corriosive liquids.





>>> Application Area

♦  Construction

♦  Industrial

♦  Municipal

♦  Agricultural

♦  Mining

♦  Dewatering

♦  Industrial Waste

♦  Sewage

♦  Oil Field

♦  Petrochemical

♦  Paper Mills

♦  Processing

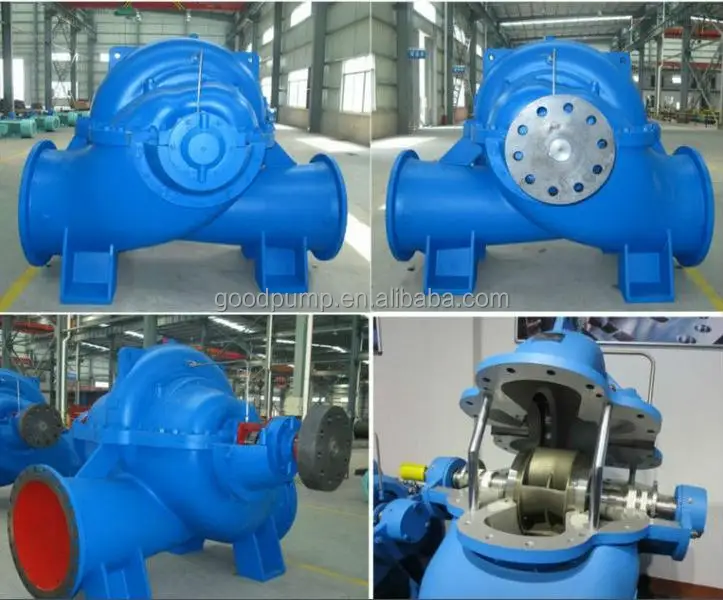

>>> Pump Specification



Pump Type Split Casing Pump
Casing Material HT200
Impeller SS304,SS316,Copper,HT200
Pump Sealing Packing seal,Mechanical seal
Capacity Range 126m3/h~8520m3/h
Head Range 8m~140m
Inlet/Outlet diameter 6"(150mm)~32"(800mm)
Rotary Speed 1450rmp/2950rpm/585rpm/730rpm/970rpm
NPSH(r) 2.5m~7.5m
N.weight 165kgs~2550kgs
Pump Parts

Casing,Pump cover,Impeller,Shaft, Double suction sealing ring

Shaft sleeve,Bearing etc

Certificate

ISO9001:2008,CE,TUV











>>> Basic Configuration

Speed Sensor Governor
Pressure gauge 2 sets 12V battery
Water temp sensor Pump quality certificate
Common base Diesel engine handle book
Base fuel tank Heat exchanger
Lubricating oil pressure Lubricating heater
Water pressure gauge Pressure gage

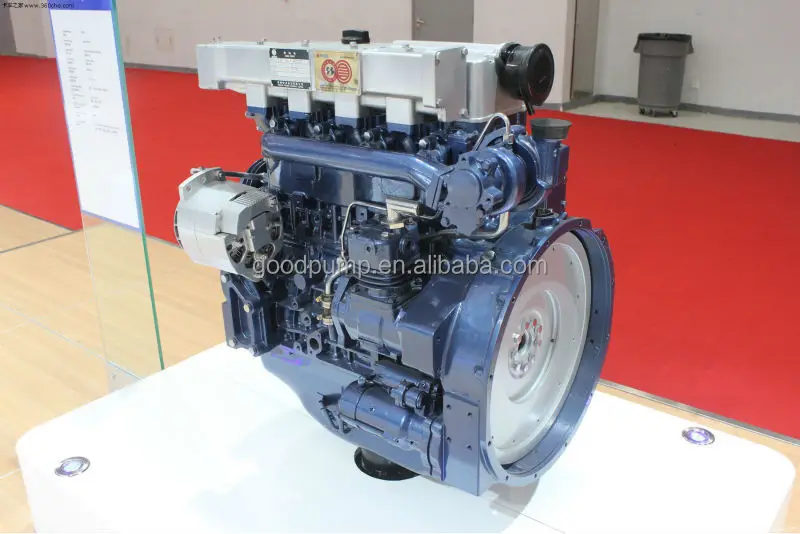

>>> Diesel engine specification

Drive Variation Cummins, Deutz, Ricardo ,Perkins or Chinese Diesel
Power Range 50HP~1066HP
Diesel driving Water cooled,air cooled
Cylinder 2 or 4
Cylinder diameter 95,96,100,102,105,110,113
Stroke 115,125,130,135
Displacement 3.26~9.49L
Engine Oil Capacity 13L,17L
Fuel consumption 218,224,231,251.6,258.4
N.weight 650kgs~2200kgs



>>> Other fittings:(according to different requirements)

Trailer,  Static speakers etc





Accessories



>>> Accessories & Spare Parts

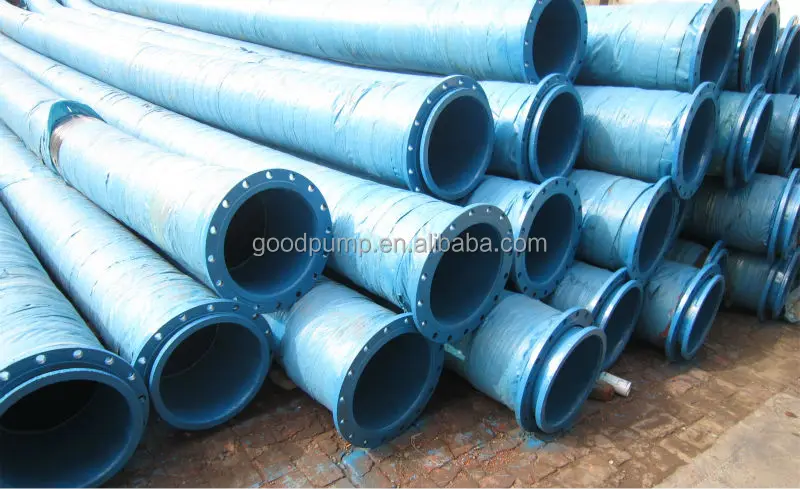

 >>> Hose (PVC Flexible Hose with Steel Wire, Flange Connection)





Pump Testing

>>> Each machine must be strictly tested before its delivery
