NFPA20 Standard Diesel Engine Water Fire Pump
NFPA20 Standard Diesel Engine Water Fire PumpNFPA20 Standard Diesel Engine Water Fire PumpNFPA20 Standard Diesel Engine Water Fire Pump

NFPA20 Standard Diesel Engine Water Fire Pump

FOB Price:
US 3000-35000 / Set
Min.Order Quantity:
1 Set/Sets
Supply Ability:
500 Set/Sets per Month
Port:
NINGBO
Place of Origin:
Zhejiang, China (Mainland)
Payment Terms:
L/C,D/P,T/T,Western Union
Brand:
YONJOU
Products Model:
S
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: YONJOU

    Model Number: S

    Place of Origin: Zhejiang, China (Mainland)

  • Theory: Centrifugal Pump

    Structure: Single-stage Pump, Water pump for Deutz

    Usage: fire fighting

  • Power: Electric

    Standard or Nonstandard: Standard

    Fuel: Diesel

  • Pressure: High Pressure

    Application: Maritime

    Material: Cast Iron/Stinless steel

  • Certificate: CE/ISO9001:2000/SGAny

Packaging & Delivery

  • Packaging Details: packing :standard export plywood case per fire pump
  • Delivery Detail: --

Specifications

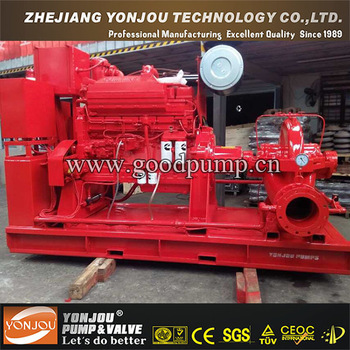

  NFPA20 Standard Diesel Engine Fire Pump



Product Description

 We got diffreent series diesel engine and can  make product customization for clients.



Diesel Engine Brand

International Brand: CUMMINS, DAEWOO, VOLVO, MAN, PERKINS, MITSUBISHI,JOHN DEERE, DEUTZ, MTU, CATERPILLER, YAMAHA, IMC, IVECO

Chinese Brand: WEICHAIYUCHAISDECFAWQUANCHAICHANGCHAIXINCHAIDFACDCDBEINEIHBE.





Baseplate Type

Cart Type, Mobile Trailer Type, Auto Truck Type, Totally Enclosed Mute Type.





Control Mode

Manual Start, Button start, 3G Remote start, Intelligent and Multi-function operation.











Application Area:

♦  Construction

♦  Industrial

♦  Municipal

♦  Agricultural

♦  Mining

♦  Dewatering

♦  Industrial Waste

♦  Sewage

♦  Oil Field

♦  Petrochemical

♦  Paper Mills

♦  Processing





Pump Specification:

Pump Type Multistage Centrifugal Pump
Casing Material HT200
Impeller SS304,SS316,Copper,HT200
Pump Sealing Packing seal
Capacity Range 126m3/h~8520m3/h
Head Range 8m~140m
Inlet/Outlet diameter 6"(150mm)~32"(800mm)
Rotary Speed 1450rmp/2950rpm/585rpm/730rpm/970rpm
NPSH(r) 2.5m~7.5m
N.weight 165kgs~2550kgs
Pump Parts

Casing,Pump cover,Impeller,Shaft, Double suction sealing ring

Shaft sleeve,Bearing etc

Certificate

ISO9001:2008,CE,TUV





Diesel engine specification:

Drive Variation Cummins,Deutz,Ricardo,Perkins or Chinese Diesel
Power Range 50HP~1066HP
Diesel driving Water cooled,air cooled
Cylinder 2 or 4
Cylinder diameter 95,96,100,102,105,110,113
Stroke 115,125,130,135
Displacement 3.26~9.49L
Engine Oil Capacity 13L,17L
Fuel consumption 218,224,231,251.6,258.4
N.weight 650kgs~2200kgs























Production Flow

>>>Production Flow:





Packaging & Shipping

>>>Our package: strong enough during delivery by air or by sea.

The goods are packed in new strong cases suitable for long distance ocean and air transportation.

1. Steel Bar with Plastic Film

2. Plywood Case

3. Steel Bar with Plywood













Testing

>>>Testing: Eachmachine must be strictlytestedbefore its delivery.
