200m3 h Diesel Engine Water Pump Set Diesel Engine Irrigation Pump
200m3 h Diesel Engine Water Pump Set Diesel Engine Irrigation Pump200m3 h Diesel Engine Water Pump Set Diesel Engine Irrigation Pump200m3 h Diesel Engine Water Pump Set Diesel Engine Irrigation Pump

200m3 h Diesel Engine Water Pump Set Diesel Engine Irrigation Pump

FOB Price:
US 1500-35000 / Set
Min.Order Quantity:
1 Set/Sets
Supply Ability:
100 Set/Sets per Month
Port:
NINGBO
Place of Origin:
Zhejiang, China (Mainland)
Payment Terms:
L/C,T/T,Western Union
Brand:
YonJou
Products Model:
IS
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: YonJou

    Model Number: IS

    Place of Origin: Zhejiang, China (Mainland)

  • Theory: Centrifugal Pump

    Structure: Single-stage Pump

    Usage: Water

  • Power: Diesel

    Standard or Nonstandard: Standard

    Fuel: Diesel

  • Pressure: Low Pressure

    Application: irrigation

    Material: Cast Iron,SS201,SS304,SS316,Copper

  • Maximum water temperature: 80 Centigrade

    Seal: Packing seal

    Diesel driving: Water cooled or air cooled

  • Drive Variation: Cummins,Deutz,Ricardo,Perkins or Chinese Diesel,Electric Motor

    Skid Mounted on: 2 or 4 wheels Trailer/Trailor,Cart

Packaging & Delivery

  • Packaging Details: Standard export plywood case water pump with diesel engine and accessories.
  • Delivery Detail: 20 days after received the deposit

Specifications

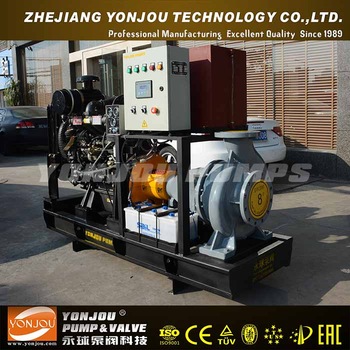

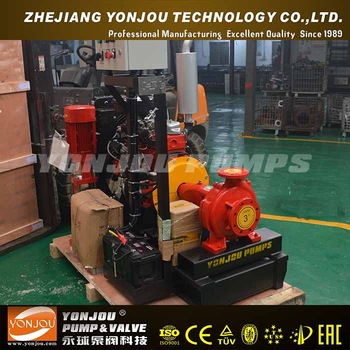

200m3/h Diesel Engine Water Pump Set, Diesel Engine Irrigation Pump



YONJOU Type diesel engine water pump set is a new generation of high efficient pump set made by YONJOU Pump Company. It gathers global resources and has flexible combination (single cylinder, multiple cylinder, water cooling, air cooling, marine diesel engine). We will provide you an all-round service and share with Global Resource Service.



Type: Centrifugal Type, Selfpriming Type, Endsuction Type, Positive displacement Type, Screw Type, Diaphragm Type, Submerged Type.



Diesel Engine Brand:

International Branded Diesel Engine (Such as CUMMINS, DAEWOO, VOLVO, MAN, PERKINS, MITSUBISHI,JOHN DEERE, DEUTZ, MTU, CATERPILLER, YAMAHA, IMC, IVECO) Domestic Branded Diesel Engine (Such as WEICHAIYUCHAISDECFAWQUANCHAICHANGCHAIXINCHAIDFACDCDBEINEIHBE).



Baseplate Type:Cart Type, Mobile Trailer Type, Auto Truck Type, Totally Enclosed Mute Type.



Control Mode: Manual Start, Button start,3G Remote start,Intelligent and Multi-function operation.



Main Usage:City Drainage, Flood Relief, Firefighting, Emergency, Main Drainage, Exploration, Oil Field, Field Working, Ship, Market, Farm Irrigation, River Sewage, Factory, Garden, Power Station, Sea Water Project, Water Project.



Range Of Application: Equipped with different pumps can transfer different liquids, such as fresh water, sewage water, sea wateroil and chemical materials.



Centrifugal Pump Parts:

Pump Type End Suction Centrifugal Pump
Casing Material HT200
Impeller SS304,SS316,Copper,HT200
Pump Sealing Packing seal
Capacity Range 2m3/h~400m3/h
Head Range 5m~125m
Inlet/Outlet diameter 6"(150mm)~32"(800mm)
Rotary Speed 1450rmp/2950rpm
NPSH(r) 2.5m~7.5m
Pump Parts

Casing,Pump cover,Impeller,Shaft,sealing,

Shaft sleeve,Bearing etc







Diesel Engine Parts:

Drive Variation Cummins,Deutz,Ricardo,Perkins or Chinese Diesel
Power Range 50HP~1066HP
Diesel driving Water cooled,air cooled
Cylinder 2 or 4
Cylinder diameter 95,96,100,102,105,110,113
Stroke 115,125,130,135
Displacement 3.26~9.49L
Engine Oil Capacity 13L,17L
Fuel consumption 218,224,231,251.6,258.4
N.weight 650kgs~2200kgs

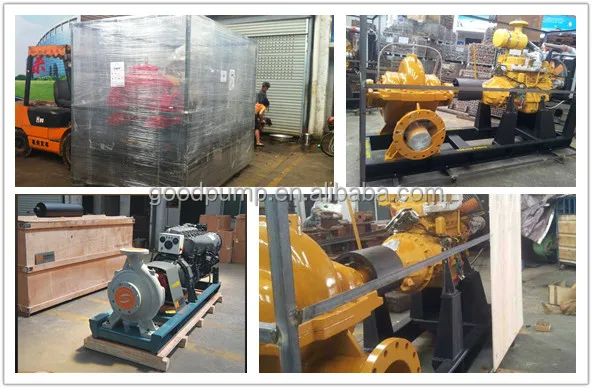

Packaging & Shipping

Three Different packaging ways:

1. Steel Bar with Plastic Film

2. Plywood Case

3. Steel Bar with Plywood







Our Services



Services:

We can supply sample, but need sample fee.

We can supply one year grantee for our pump, except pump spare parts.

We can supply trolly for this pump

We can supply customized name plate.





Photos of  Company:



Production:







Certificate: ISO9001:2008, CE







Material for Casing:: Cast Iron or Stainless Steel

Material for Gear: 45# Steel, Bronze, or Stainless Steel

Voltage: 220v  or 380v, 480v

Guarantee: One year, except the spare parts (like gear and sealing)



Why chose YONJOU Pump, any advantages?

Check the below comparison chart:
