New AC05 roof top aftermarket tractor air condition

FOB Price:

US 500-600 / Unit

Min.Order Quantity:

1 Unit/Units

Supply Ability:

200 Unit/Units per Month

Port:

Qingdao, China

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

Rifusen

Products Model:

AC05

Products Details
Company Profile

Quick Details

Brand Name: Rifusen

Model Number: AC05

Place of Origin: Henan, China (Mainland)
Size: see below
Type: tractor air condition
Car Make: Tractor
OE NO.: N/A
cooling capacity: 5KW
maximum air flow: 850m³/h
refrigerant: R134a
net weight: 32kgs
color: white
packing: carton
voltage: 12V / 24V
Product name: tractor air condition

Packaging & Delivery

Packaging Details: carton packing for tractor air condition
Delivery Detail: Shipped in 5 days after payment

Specifications

Product Description

New AC05 roof top aftermarket tractor air condition

SPECIAL APPLICATION NOTE:
Installation of this air conditioning accessory requires cutting hole through the roof of the cab.

Minimum tractor requirements:
- Engine compartment: Adequate space must exist to mount the compressor. Compressor Dimensions are: 9.1" long X 5.3" Diameter.
ensuring sufficient engine compartment space is available for mounting the compressor and that engine horsepower is sufficient for driving the system.

This kit INCLUDES:
- compressor (to be mounted to the engine) with an "A-type" clutch pulley.
- a generic compressor mount.

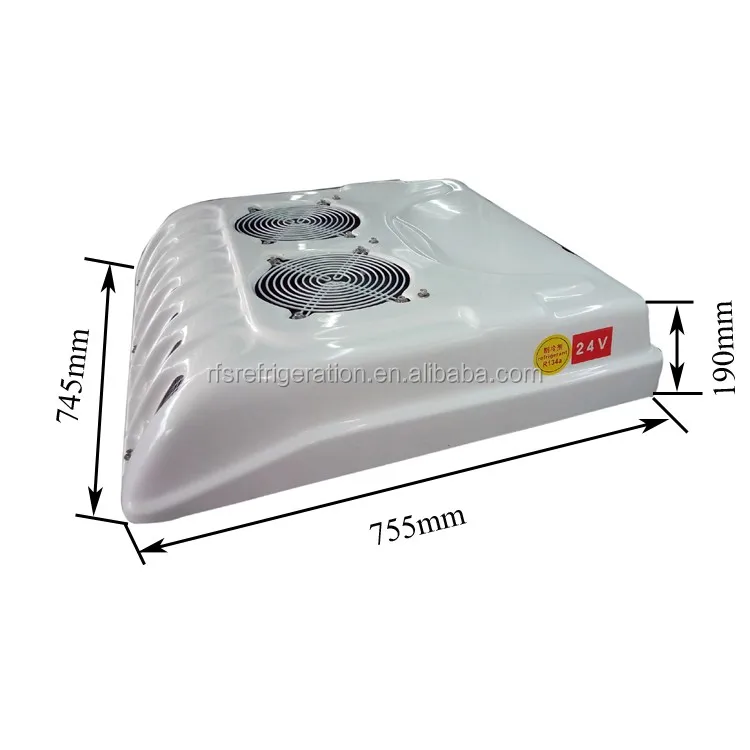

- Roof-top, self-contained evaporator/condensor/blower unit
- All mounting hardware
- Mounting instructions

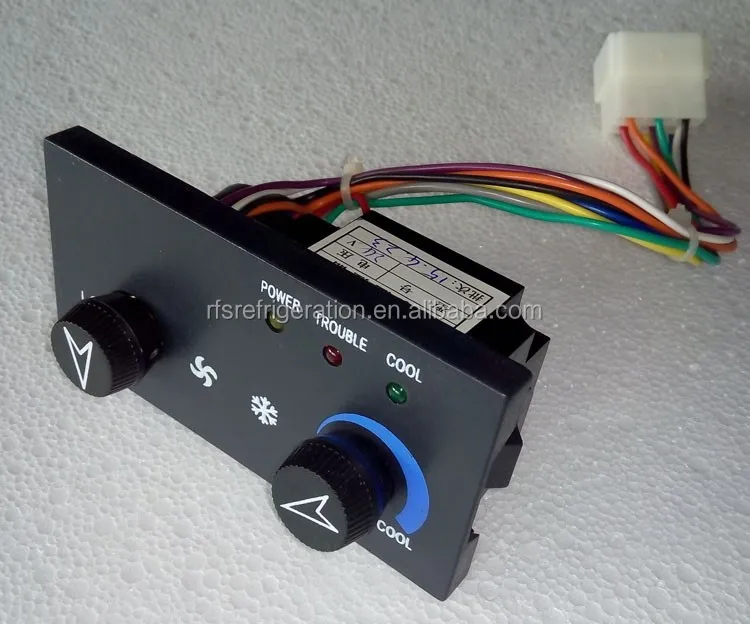

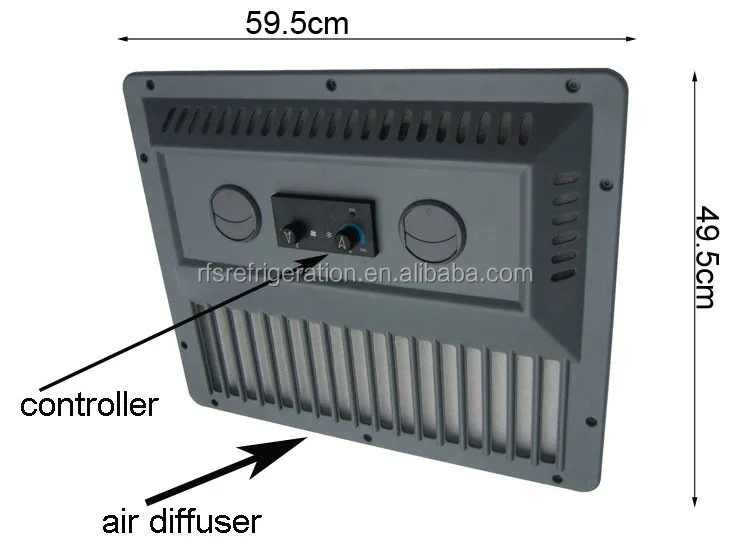

- Interior plenum with directional ducts and unit controls

This kit DOES NOT include:
- Freon for charging the system (System ships uncharged, and will require charging with up to 28 oz of Freon R134A by a licensed technician.
- Compressor drive belt
- Compressor mounting bracket

Other NOTES:
one year warranty after receiving the goods.

Unit Specifications:
- Horsepower Draw - 6-8 HP Max.
- Current Draw - 30 Amps Max.
- Fan Air Flow - 395 CFM Max.
- Unit Weight - Approx. 70lbs.
- Unit Size - 29" Wide x 30" Long x 7.5" High
- Cooling Output - 17,000 BTU Max.
- Refrigerant Charge - 28 ounces of Freon R134A (Not Included)
- Compressor Dimensions are: 9.1" long X 5.3" Diameter

Trade Shows

Certifications

Company Information

Xinxiang Rifusen industrial & trade co.,ltd is a factory which has rich experience and strong skills in manufacturing air conditioner for van , truck , bus and heavy mobile equipment since 2005 .

Whethe your order is big or small we could delivery them on time .
