Cast Iron Butterfly Valves

FOB Price:

US 17.66-134.59 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

10000 Piece/Pieces per Month

Port:

SHANGHAI, TIANJIN

Place of Origin:

Hebei, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Brand:

JINKETONGLI

Products Model:

Butterfly Valve

Products Details
Company Profile

Quick Details

Brand Name: JINKETONGLI

Model Number: Butterfly Valve

Place of Origin: Hebei, China (Mainland)
Standard or Nonstandard: Standard
Structure: Butterfly
Pressure: High Pressure
Power: Manual
Material: Casting
Temperature of Media: High Temperature
Media: water, oil & gas
Port Size: DN15-DN1400
Application: General, Industry
Product name: Cast Iron Butterfly Valves
Certificate: ISO9001
Color: Customer's Request
Body material: Ductile Iron
Working medium: Liquid
Surface: Powder Coating
Operation: Worm Gear
Type: Normal Colse
Working pressure: 1.0-1.6Mpa (10-25bar)

Packaging & Delivery

Packaging Details: wooden box or according customer's requirement
Delivery Detail: 15 days after we get customer's payment

Specifications

Product Description

Parts	Material
valve body	carbon steel, stainless steel, cast iron, ductile cast iron
butterfly plate	SS304, SS316
valve seat	carbon steel, stainless steel, cast iron, ductile cast iron
Axle sleeve	carbon steel, stainless steel
stem	carbon steel, stainless steel
filler	graphite

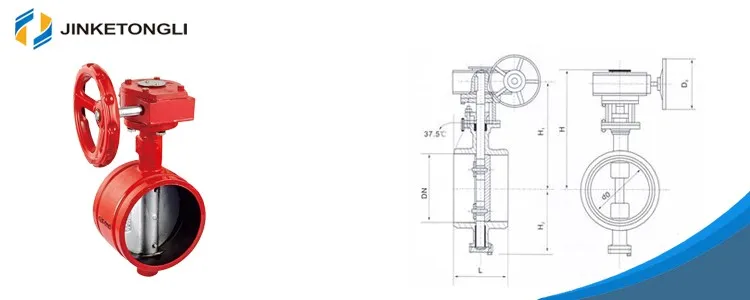

Nominal diameter		Main dimension			Nominal diameter		Main dimension
in	DN(mm)	L	H1	H	in	DN(mm)	L	H1	H
4	100	190	270	370	18	450	330	535	820
5	125	200	295	390	20	500	350	560	900
6	150	210	308	416	24	600	390	630	980
8	200	230	370	530	28	700	430	670	1100
10	250	250	450	580	32	800	470	800	1300
12	300	270	465	630	36	900	510	850	1370
14	350	290	475	595	40	1000	550	880	1480
16	400	310	505	755	48	1200	630	1000	1690

Our Factory

Advantages

1 Small light, easy to dismantle, bulk and maintenance, and can be installed in any location.

2 Simple and compact structure, 90 degree rotation speed.

3 Operating torque is small, effort and light.

4 Flow characteristics tend to straight line, good regulation performance.

5 Opening and closing test times up to tens of thousands of times, long life.

6 To achieve full seal, gas leak test to zero.

7 Replacement parts material, matching, can be applied to a variety of media.

8 Unique form of beauty, ranking first in the country.

9 Valve surface spray treatment, the butterfly plate adopts no pin solution complete isolation valve shaft

and liquid.

Hebei Tongli Automatic Control Valve Manufacturing Co., Ltd. is a comprehensive enterprise integrating valve research, production and sale. In recent years, our company has been mainly engaged in the development and production of HVAC and water supply, drainage valves, digital locked balance valves, flow control valves, self-reliance type dynamic resistance differential pressure control valves, balance valves, electric 3-way regulating valves, electric two-way valves, regulating valves, temperature difference and temperature control valves.

Our feed water series includes remote-controlled floating ball valves, hydraulic level control valves, hydraulic slowly-closing silencing check valves, vacuum regulator valves and so on. Some products have obtained 12 national patents, and our products have been endorsed by the ministry of construction as the construction, design staff preferred products, and are successively chosen by the national key projects.

Our company has are capable of casting, processing, assembly and quality inspection. We employ a number of domestic and foreign well-known experts and professors as technical advisers, constantly improve the technological content of products and develop new products to make technology tangible.
