Auto backwash sand filter

FOB Price:

Open price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

1000 Set/Sets per Year

Port:

Shanghai

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal

Brand:

PEIDE Sand filter

Products Model:

PD500 to PD3000 Sand filter

Products Details
Company Profile

Quick Details

Brand Name: PEIDE Sand filter

Model Number: PD500 to PD3000 Sand filter

Place of Origin: Jiangsu, China (Mainland)
Application: water filter
Sand filter Flow rate: 6-300T/H
Sand filter Material: carbon steel or stainless steel
Water inlet pressure: 2.5-3 bar
Connect Method: Flange
Design Pressure: 7.5-16 bar
Sand filter Seal Type: O-ring and Washer
The key of filter effect: water distribution and catchment technology
The Range of Working Temperature: 20-120.C (68-248.F)

Packaging & Delivery

Packaging Details: wooden cases
Delivery Detail: 20 working days

Specifications

Auto backwash sand filter

Quartz sand filter removes impurities from raw water to achieve water reuse. Filter is automatic operation and back-flushing, under control system of dp-switch (pressure drop), butterfly and PLC control system.

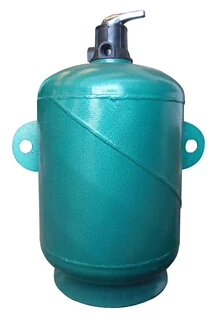

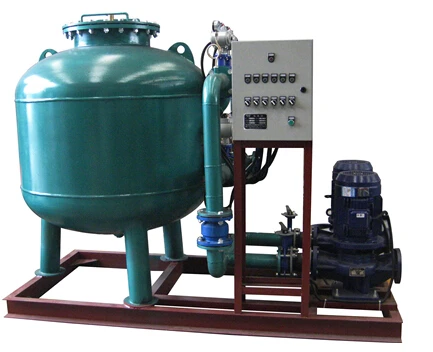

Sand filter Pictures
Big-flow auto Small-flow auto Small-flow auto big-flow manual small-flow manual

Sand filter Pictures

Big-flow auto Small-flow auto Small-flow auto big-flow manual small-flow manual

How does the quartz Sand filter works
Raw water passes inside water distributor into filter media layer (quartz sand), which let impurities stay at sand layer. Clean water flow out stably from water collector. When the pressure drop reaches the given value, the cleaning cycle is started. The rinse control start working at pressure drop value at 0.05-0.15MPa, return to 0.02-0.04MPa after back flushing. Quartz sand inside tank mixed with coarse and fine sands. They are allocated above water distributor averagely. Even in back flushing, water consumption is little. Tank inside has rubber line and plastic line for option. It is for anti-corrosion, which ensure a tank can be used 10-20years. The completed filter control system has finished already in factory.

How does the quartz Sand filter works

Raw water passes inside water distributor into filter media layer (quartz sand), which let impurities stay at sand layer. Clean water flow out stably from water collector. When the pressure drop reaches the given value, the cleaning cycle is started. The rinse control start working at pressure drop value at 0.05-0.15MPa, return to 0.02-0.04MPa after back flushing.

Quartz sand inside tank mixed with coarse and fine sands. They are allocated above water distributor averagely. Even in back flushing, water consumption is little. Tank inside has rubber line and plastic line for option. It is for anti-corrosion, which ensure a tank can be used 10-20years. The completed filter control system has finished already in factory.

Technical Parameter

Sand filter Parameter

Single Flow Rate	6-300m³/H
Design Pressure	7.5-16 bar
Water inlet pressure	2.5-3 bar
The Range of Working Temperature	20-120.C (68-248.F)
Seal Type	O-ring and Washer
Connect Method	Flange
Surface Treatment	Matt Spray Beads, Mirror Polishing, Electropolishing
Control Method	Differential pressure switch, Time control and manual control
Filter sand type	Quartz sand, activated carbon, Anthracite, fiber ball, resin
Filter medium supply	We can supply different kind filter medium and combination
Equipment Chamber Material	Carbon steel 304ss or 316L
The key of filter effect	water distribution and catchment technology

Application

Where to use quartz Sand filter
Swimming pool, hotel spa, water entertainment, aquarium, fish farm Irrigation in agriculture Drinking water pre-treatment Industrial recycled water, central air-condition system

Where to use quartz Sand filter

Swimming pool, hotel spa, water entertainment, aquarium, fish farm

Irrigation in agriculture
Drinking water pre-treatment
Industrial recycled water, central air-condition system

Model Specification

We have models for choose

Quartz sand filter with water enters from top

Item	Model	Φ (mm)	Height (mm)	Connect size (mm)	Filter area	Flow rate (T/H)
1	QLQ500×700	520	816	40	0.2	6-10
2	QLQ600×766	620	874	40	0.28	8-14
3	QLQ700×819	720	899	40	0.38	12-19
4	QLQ800×872	820	957	50	0.5	15-25
5	QLQ900×1024	920	1104	50	0.64	18-30
6	QLQ1000×1079	1000	1164	50	0.79	23-39
7	QLQ1100×1131	1100	1211	50	0.95	28-47
8	QLQ1200×182	1200	1267	80	1.13	33-55

Quartz sand filter with water enters from side

Item	Model	Φ (mm)	Height (mm)	Connect size (mm)	Filter area	Flow rate (T/H)
1	QLQ1400×1700	1400	1700	100	1.54	45-75
2	QLQ1600×1800	1600	1800	150	2.01	60-100
3	QLQ1800×1900	1800	1800	150	2.54	75-125
4	QLQ2000×2000	2000	1900	150	3.14	95-155
5	QLQ2000×2000	2200	2000	150	3.8	115-190
6	QLQ2400×2100	2400	2100	150	4.52	130-210
7	QLQ2600×2400	2600	2400	150	5.3	145-225
8	QLQ2800×2500	2800	2500	200	6.15	155-240
9	QLQ3000×2600	3000	2600	200	7	170-255

Diagram on pressure drop

Diagram on pressure drop

Installation Diagram
