JZW Series Quiet Box Type Air Cold Condensing Unit for Cold and Freezer Rooms

JZW Series Quiet Box Type Air Cold Condensing Unit for Cold and Freezer Rooms

FOB Price:
US 580-5,569 / Unit
Min.Order Quantity:
1 Unit/Units
Supply Ability:
500 Unit/Units per Week
Port:
FOB QINGDAO
Place of Origin:
Shandong, China (Mainland)
Payment Terms:
L/C,T/T,Western Union
Brand:
LYTTE or LUTE or OEM
Products Model:
JZW
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: LYTTE or LUTE or OEM

    Model Number: JZW

    Place of Origin: Shandong, China (Mainland)

  • Type: air cooled condensing unit, Box type

    Certification: CE

    After-sales Service Provided: Engineers available to service machinery overseas

  • Refrigerant Type: R22/R410A,R404A, etc

    Compressor: Brand refrigerant compressors as Copeland, Tecumseh, Bitzer etc

    Power Supply: 380V/3P/50HZ | 220V/50HZ

  • Applicable Temperature: -5℃~ 5℃ | -20℃~ -15℃

    Advantages: Nice appearance, compact structure, etc

    Certificates: CE, ISO9001, CRAA

  • Application: For refrigeration cold and freezer rooms

    Fan: With 6 pole external rotor motors

Packaging & Delivery

  • Packaging Details: wooden cases with pallet for safe and convinient transportation
  • Delivery Detail: 15-20 days

Specifications

-Brand refrigerant compressors;
-Fan with 6 pole external rotor motors;
-Unit established by electrical control accessories;







Product Description







JZW Series Quiet Box Type Air Cold Condensing Unit for Cold and Freezer Rooms



Introduction:
This series products feature box type structure with scroll compressor, that is compact ans pleasant looking, applicable to cold display cases, cold storage rooms, ice producers etc. The applicable temperature ranges are:-5°C~ 5°C and -20°C~ -15°C Cold and Freezer Rooms. They be used in hotels, restaurants, medicines, agricutureral, chemicals industries all other place where cold storage is needed.
Main Components:
1. Brand refrigerant compressors as Copeland, Tecumseh, Bitzer etc. with high reliability are selected;
2. Fan with 6 pole external rotor motors;
3. For the unit with 2 fans, the condenser fans are automatically controlled;
4. World famous brand refrigeration parts are employed for all products;
5. Unit established by electrical control accessories, with the protection of lack of phase, overload, frequent start and high voltage.
Model Specifications:
JZW 03 L A G Y
JZW---LVTE Company Products Code

03---Compressor Power Input(HP)

L---Temperature: M:-5°C~ 5°C L:-20°C~ -15°C

A---Air Side Outlet

G---Compressor Brand, T—Tecumseh G—Copeland B—Bitzer

Y---Refrigerant: Y—R404a; Empty—R22
Tecumseh Fully-hermetic Piston Compressor Series:
1.Temperature:-5°C~ 5°C Models: JZW0.6MATY---JZW03MATY(0.6HP-3HP)
2.Temperature:-20°C~ -15°C Models: JZW01LATY---JZW03LATY(1HP-3HP)
Copeland ZB(Scroll) Compressor Series
1.Temperature:-5°C~ 5°C Models: JZW02MAGY---JZW08MAGY(2HP-8HP)
2.Temperature:-20°C~ -15°C Models: JZW02LAGY---JZW10LAGY(2HP-10HP)
Bizter Semi-hermetic Piston Compressor Series
1.Temperature:-5°C~ 5°C Models: JZW02MABY---JZW07MABY(2HP-7HP)
2.Temperature:-20°C~ -15°C Models: JZW02LABY---JZW12LABY(2HP-12HP)

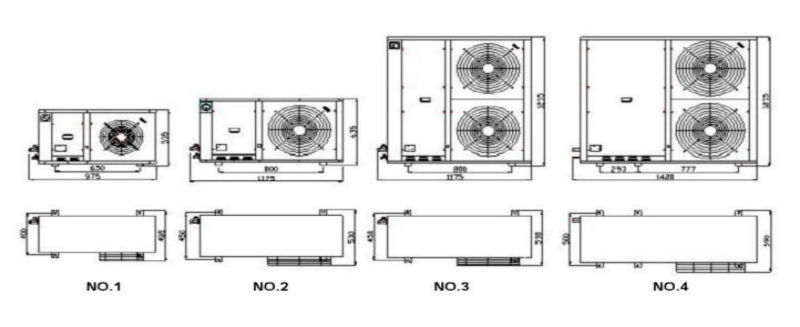

Overall Size:



Product Pictures
