Brand Name: LYTTE
Model Number: FNV
Place of Origin: Shandong, China (Mainland)
Type: Condenser
Certification: CE
After-sales Service Provided: Engineers available to service machinery overseas
Name: Air cooled condenser
Refrigerant: R22,R134A,R407C,R404A
Motor: large air volume and low speed internal motors
Certificate: CE | ISO9001 | CRAA

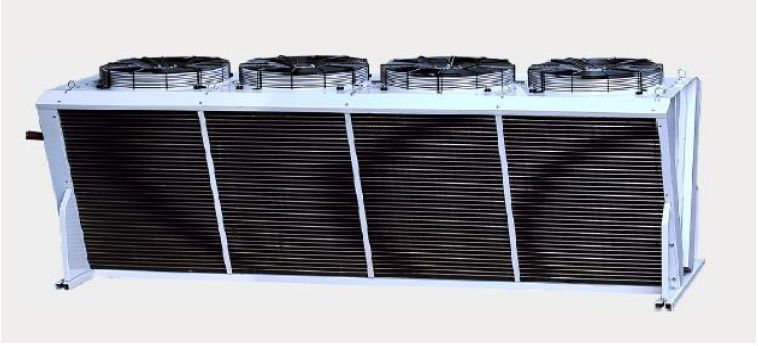

Air Cooled Condenser Series, FNV Type
Introduction
Air cooled condenser is a kind of cooling devices by utilizing air which connected with Freon refrigeration equipments.
Now we produce FN, FNS type and FNV type air cooled condenser, Air side outlet for FN&FNS type and Air top outlet for FNV type.
Features
1. The outcovering is made of high-quality steel plate with sprayed surface to ensure corrosion resistance, beautiful appearance;
2. Units adopted 2.8MPa air tightness test and system sewage discharge treatment;
3. Coil adopted staggered permutation,and tighted to fit with Aluminum sheet to ensure high efficiency heat exchange;
4. Application for R22,R134a,R404a,R407C etc. refrigerant;
5. FNS condenser utilized large air volume and low speed internal motors with low noise,beautiful appearance; Application for refrigerant equipments which demand high requirements of noise;
6. FNV condenser have the features of large windward side, high quality heat exchange; external rotor motors used.
Models Specifications
FN S ----- 80 A
FN--- Condenser Products Code
S--- Type: S(Low Noise Type); V(Air Top Outlet Type); P(Water Spray Type); None(Standard Type)
80--- Heat Exchange Area
A--- Version Code
FNV Type: Air Top Outlet Models: FNV-70A to FNV-505A
Overall Size
FNV Type Models Technical Data Sheet:

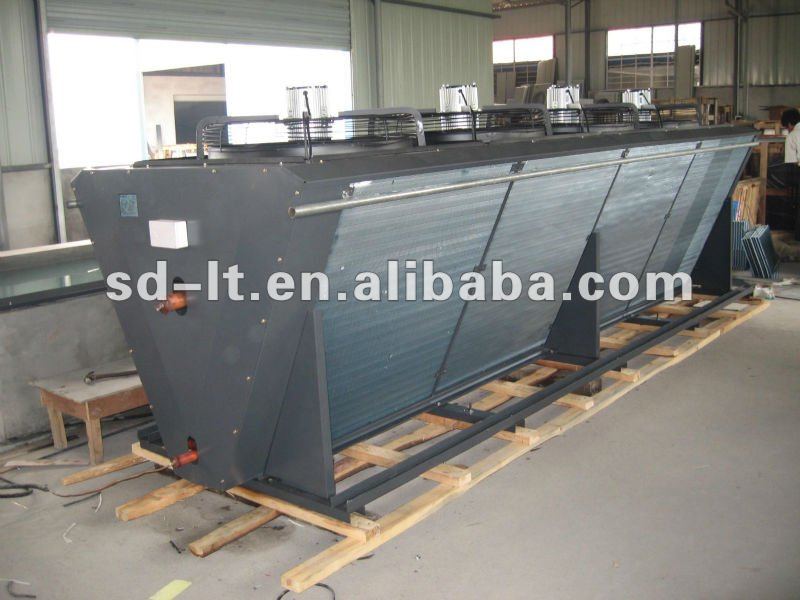

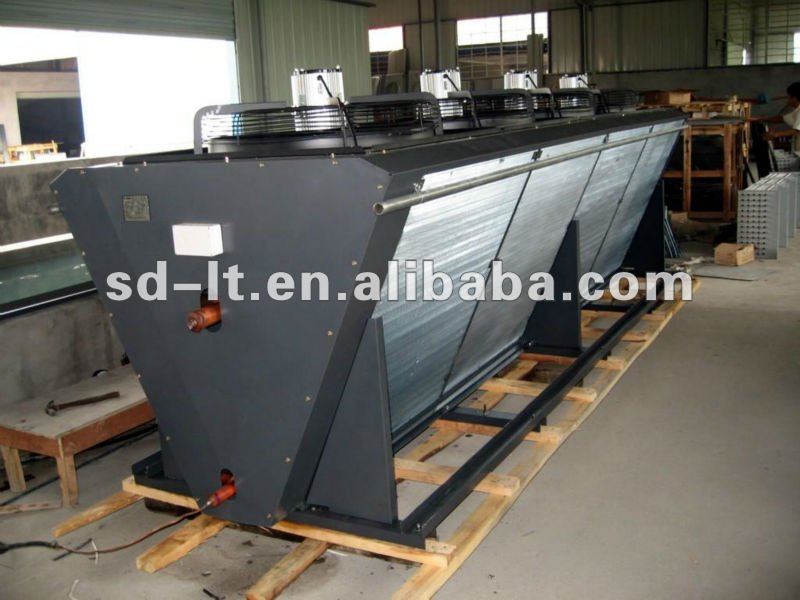

Products in the Factory
