High Quality Spiral Quick Freezing Machine for Sales

FOB Price:

US 20,000-35,000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

20 Set/Sets per Month

Port:

Tianjin, China

Place of Origin:

Tianjin, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Brand:

Products Model:

SL-300

Products Details
Company Profile

Quick Details

Brand Name: HX

Model Number: SL-300

Place of Origin: Tianjin, China (Mainland)
Condition: New
Type: Spiral Freezer
Voltage: 220V/380V
Power(W): 6.5 KW
Dimension(L*W*H): 6.5*3.5*2.85 (SL-300) customized
Weight: 8-9tons
Certification: CE,ISO
Warranty: 18 months
After-sales Service Provided: Engineers available to service machinery overseas
Product name: High Quality Spiral Quick Freezing Machine for Sales
Production: 300kg/h can be customized
Material: Stainless steel 304
Frozen product: small dumpling, springroller, ice cream, etc
Feature: High freezing efficiency, energy saving, low maintenance
Refrigerent: R404A, R507, R717, CO2
Infeeding temperature: 25℃ or as request
Outfeeding temperature: -18℃ or as request
Cooling Capacity: 50Kw
Evaporation temperature: -42℃

Packaging & Delivery

Packaging Details: Seaworthy standard plywood case for High Quality Spiral Quick Freezing Machine for Sales
Delivery Detail: Shipped in 20 days after payment

Specifications

High Quality Spiral Quick Freezing Machine for Sales

Product Description

Spiral Freezer Introduction:

SL series spiral freezer is a new type frozen one develop and manufactured by us. It is consisted of multilayer stainless steel conveyor belts with spiral circled in one or two drums. The products are placed on the conveyor belts, by frigid air of 35℃ frozen quickly, then transported to outer enclosure continuously. Compared to other freezers, this type freezer is constructed compactly, saves occupied area.

Spiral Freezer Feature:

1. Design according to the requirements of state food sanitation.

2. Freezing efficiency high, saving energy

3. Proven and reliable design and manufacture, low maintenance

4. Good products quality and high efficiency

5. Different type is optional

6. Run steady, reliability good, use life long

7. Custom design

Dimension Drawing

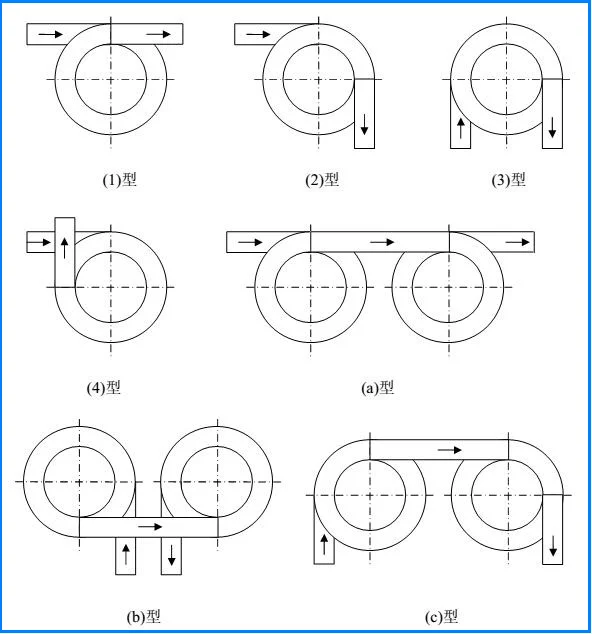

Spiral Various Struction Type

Spiral Freezer Strutural Composition

Technical Parameter

Spiral Freezer Specifications:

Model Data	SD-300	SD-500	SD-1000	SD-1500	SD-2000
Production (kg/h)	300	500	1000	1500	2000
Freezing Temp. (℃)	-35	-35	-35	-35	-35
Evaporation Temp. (℃)	-42	-42	-42	-42	-42
Feeding Temp. (℃)	25	25	25	25	25
Out-feeding Temp. (℃)	-18	-18	-18	-18	-18
Cooling Capacity (kW)	48	75	150	218	290
Refrigerant	R404A, R507, R717, R22
Products	Standard products like dumplings, spring roll, the freezing time is about 30min, the put density is 8.9kg/m2. Other food need adjusted depend on above.
Defrosting Method	Water, Hot ammonia
Defrosting Times	1 time/24hours
Power (kW)	7.5	10.5	38	45	55
Frozen Dimension (LBH m)	8.53.42.85	13.53.42.85	2042.85	2062.85	2562.85

Notes:

a. SL-XXXD is single spiral, SL-XXXS is dual spiral

b. the production capacity is at the base of 20g weight per dumpling.

c. the production capacity is different with frozen food sort.

D. besides above types, we can manufacture at the requests of clients.

It is suitable for freezing small nub, strip, grain foods such as dumpling, spring roller, ice cream, seafood, fried food,

fruit and vegetable and other small package food.

Product Details Show

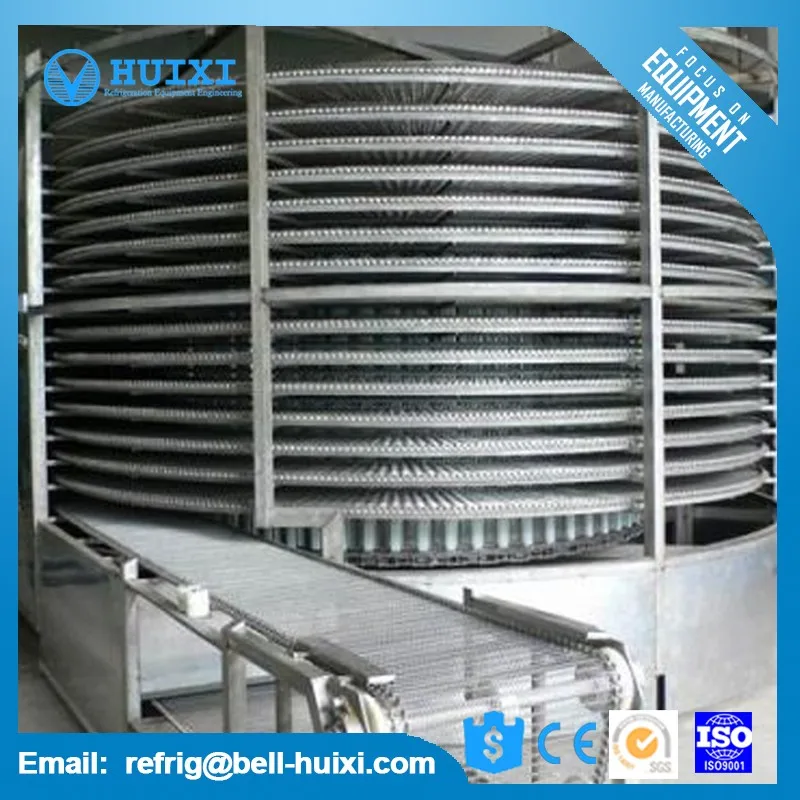

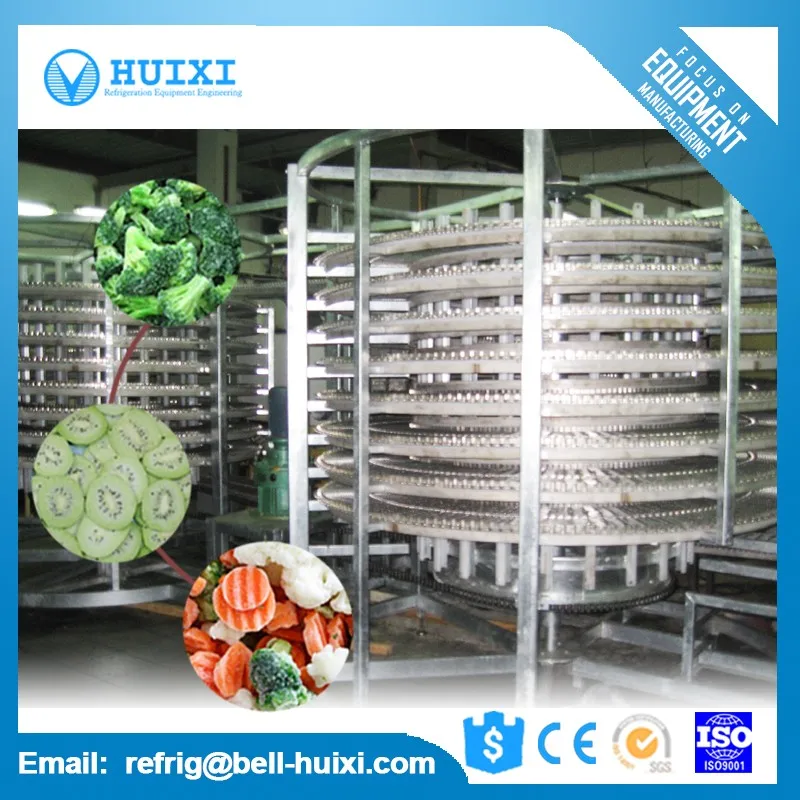

Spiral Freezer Details:

Equipment Production Workshop:
