Cabbage Quick Freezing Machine Producer China

FOB Price:

US 35,000-50,000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

10 Set/Sets per Month

Port:

Tianjin Port

Place of Origin:

Tianjin, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,MoneyGram,Paypal

Brand:

Products Model:

SD-500

Products Details
Company Profile

Quick Details

Brand Name: HX

Model Number: SD-500

Place of Origin: Tianjin, China (Mainland)
Condition: New
Type: Tunnel Freezer
Voltage: 220V/380V AC
Power(W): 10.5KW
Dimension(L*W*H): 13000x3400x2850mm
Weight: 10tons will need one or two container
Certification: ISO
Warranty: 18months
After-sales Service Provided: Engineers available to service machinery overseas
Name: Cabbage Quick Freezing Machine Producer China
Production available: 0.3 to 2 tons/hour
Material: stainless steel 304
Frozen products: cake, seafood, wheaten food, fruit and vegetable, ice-cream, fish, etc
Freezing temperature: -35℃
Evaporation temperature: -42℃
Feeding temperature: +25℃
Out-feeding temperature: -18℃
Cooling capacity: 75KW
Refrigerant: R717, R20, R404A, R507

Packaging & Delivery

Packaging Details: wrapped in stel I-beam or U framework, external with plywood case for Cabbage Quick Freezing Machine Producer China
Delivery Detail: 15 days after confirming the order

Specifications

Cabbage Quick Freezing Machine Producer China

Product Introduction

Introduction:

SD series net belt quick freezer uses a stainless steel net belt as conveyor, prepared foods put in

containers or put on the stainless steel net belt directly and frozen by cooling air from bottom to top.

Application:

It is more suitable for quick freezing prepared foods such as wheaten food, various fruit and vegetable,

ice-cream, fish and seafood.etc

Product Features

Features:

1.This type of quick freezer inlet and outlet of the net set are wide for operating.

2.Because of the special air flow distribution that cooling air current flow from bottom to top,

the product can be frozen quickly and evenly.

3.Changing power frequently can adjust net speed.

4.There are various safeguard functions in electric control panel to assure the running smoothly.

Advantages:

1.High speed, about 5-10 minutes quick freezing, saves time cost.

2. Environmental to earth and human. It is the popular trend.

3. Low noise, like a home refrigerator.

4. Little moisture loss, improve product quality and worth.

5. Low power consumption, 3 hours consume about 1 KWH.

6. Low operating cost, 1 ton liquid nitrogen can freeze about 3 tons product.

7. Little damage to cell tissue, as the speed is quick, so it has little damage to cell tissue.

8. Easy to operate, any people can operate.

9. Low labor cost, one people can finish all the freezing work.

Technical Parameter

Freezer Model Selection:

Model Data	SD-300	SD-500		SD-1000	SD-1500	SD-2000
Production (kg/h)	300	500		1000	1500	2000
Freezing Temp. (℃)	-35	-35		-35	-35	-35
Evaporation Temp. (℃)	-42	-42		-42	-42	-42
Feeding Temp. (℃)	25	25		25	25	25
Out-feeding Temp. (℃)	-18	-18		-18	-18	-18
Cooling Capacity (kW)	48	75		150	218	290
Refrigerant	R507 R404A R20/21 R717
Freezing time	15-60 minutes adjustable
Products	Standard products like dumplings, spring roll, the freezing time is about 30min, the put density is 8.9kg/m2. Other food need adjusted depend on above.
Defrosting Method	Water, Hot ammonia
Defrosting Times	1 time/24hours
Power (kW)	7.5		10.5	38	45		55
Frozen Room Dimension (LBH m)	8.53.42.85		13.53.42.85	2042.85	2062.85		2562.85

IQF tunnel freezers are designed by our expert engineers to exact specifications besed on customers'

product characteristics, capacities, facility space and line layout. Welcome to ask details!

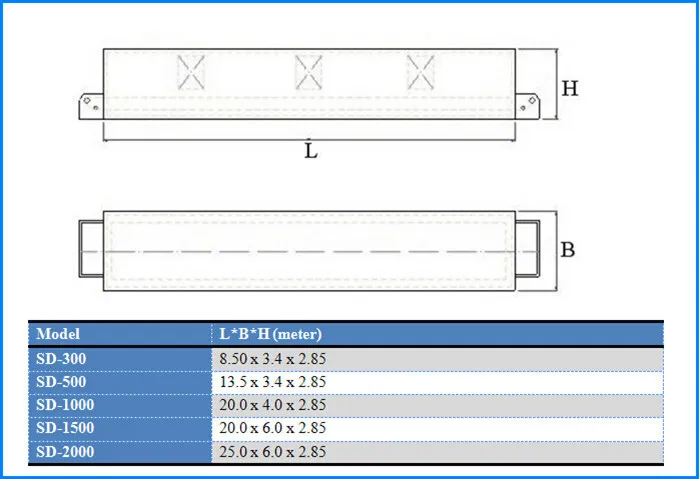

Freezer Dimension ( can be customized)

Product Details Show

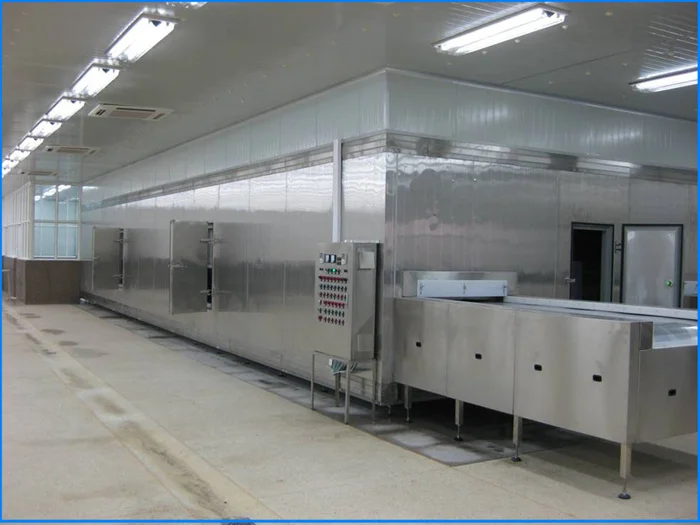

Freezer Machine Details:

Production Workshop:
