Brand Name: HX
Model Number: PF
Place of Origin: Tianjin, China (Mainland)
Type: Ventilation
Product name: Customized Phenolic Foam Board Insulation Air Duct
Material: Aluminum foil and phenolic foam
Density: 45-60kg/m3
Length: 3m or customized sizes
Width: Standard 1.2m
Thickness: 20mm/25mm/30mm
Function: Air duct material
Feature: Light, insulated, easy installation
Installation: HVAC system ventilation duct
Sample: Available

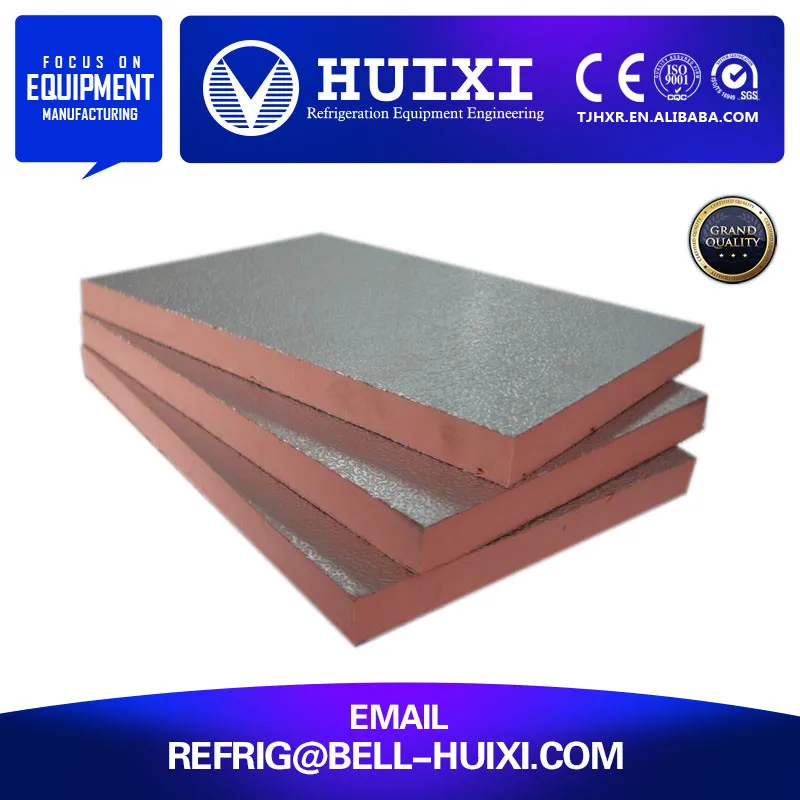

Phenolic foam boards, with phenolic foams sandwiched and embossed aluminum foil reinforced on two
sides, are widely used in central air conditioning ventilation system. Compared with the traditional air ducts,
phenolic foam compound panels have the features of better insulation effect, noise elimination, light weight, long
using life, extensive application,etc.
Phenolic Foam Board Specification
Item Tested |
Performance |
Nominal Density |
≥ 50 kg/m3 |
Aluminum Thickness |
0.05 to 0.08mm |
Thermal Conductivity |
0.020-0.025 [W/(m·k)] |
Bending Strength |
≥ 1000 kPa |
Reaction to Fire |
Non-combustible Class A |
Core material Water Absorption |
≤ 6.0% |
Regular Dimension |
4000x1200x20 mm |
Compressive Strength |
≥ 250 kPa |
Service Temperature |
-140 to150 °C |
Phenolic Foam Board Details
Phenolic Foam Board Production
Phenolic Foam Board Installation
