Brand Name: HX
Model Number: CL
Place of Origin: Tianjin, China (Mainland)
Type: HVAC Systems
Item: HVAC Aluminum Ceiling Air Jet Nozzle Diffuser
Material: Aluminum alloy ,stainless steel ect.
Size: 100mm-400mm or as request
Surface finish: Powder coating, electrostatic spray,anode treatment.
Control: Manual or electric
Accessories: Electric actuator
Application: HVAC ventilation system
Feature: Low resistance, far range, low noise,remote.
Installation: Wall Mounted
Function: Supply air flow
HVAC Aluminum Ceiling Air Jet Nozzle Diffuser
Introduction
When the public places with so large area that air supply outlet cannot reach the good affect. We will use the ball nozzle in the side to supply the air. The changing of temperature difference will lead to supply air upward or downward. The direction of supply air also is affected by the interference of external factors.
Ball nozzle jet air diffusers are designed to spherical vents, so the direction of supply air can be adjustable. It can also swing in the range of plus and minus 30 degree by actuator.
HVAC Aluminum Ceiling Air Jet Nozzle Diffuser
Specification
Product |
Ball Nozzle Jet Air Diffuser |
Material |
Aluminum sheet, cold steel sheet |
Size (mm) |
Φ100~Φ450 |
Addable accessories |
Electric actuator, Air volume valve, Plenum chamber |
Control |
manual or electric |
Color |
Powder coated Aluminum – White |
Features |
1. Jet diffuser consists of a spherical discharge nozzle mounted in a housing and is complete with a front mounting flange and circular spigot for direct connection to a circular duct. |
2. The nozzle can be adjusted manually up to max 30 degree in any direction. |
|
3. The adjustment can be motorized with an electric actuator or a pneumatic actuator. |
|
4. The jet diffuser is suitable for long throw distances with optimum acoustic properties, preferably used for side areas of large room. |
|
5. Customers can hoose different spec to achieve the required throw distance and speed. |

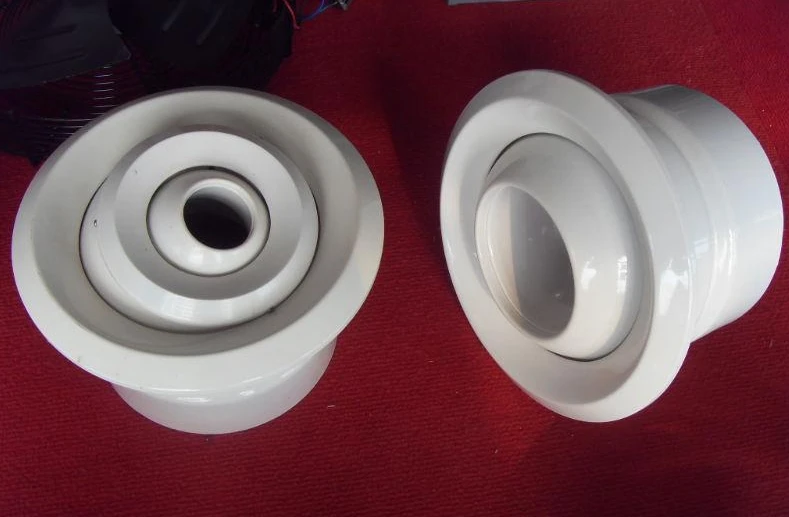

Details Display
Installation Display
