Home > Products > Refrigeration Equipment > Condensing unit

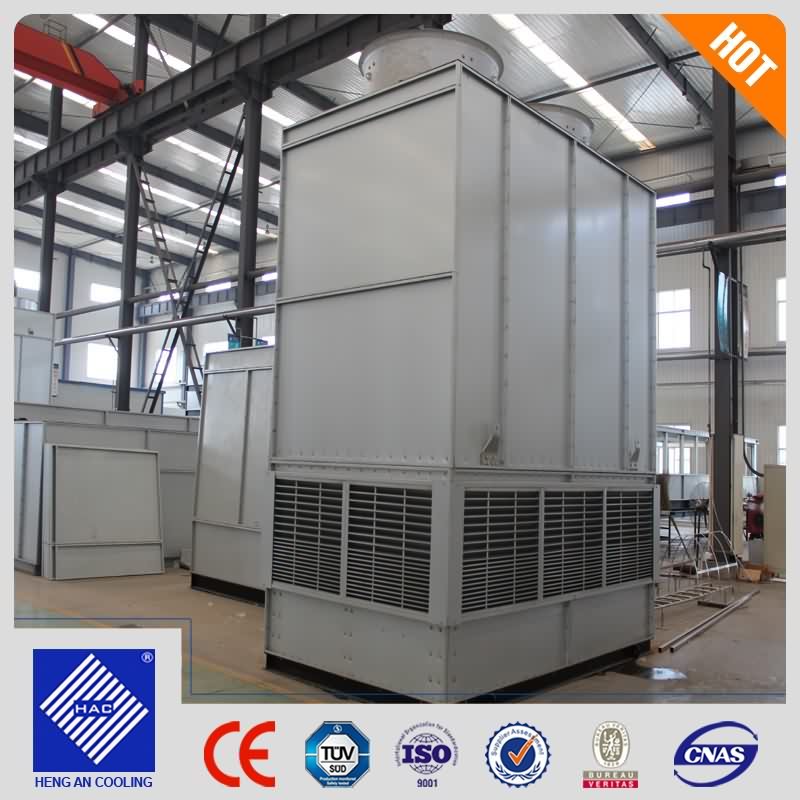

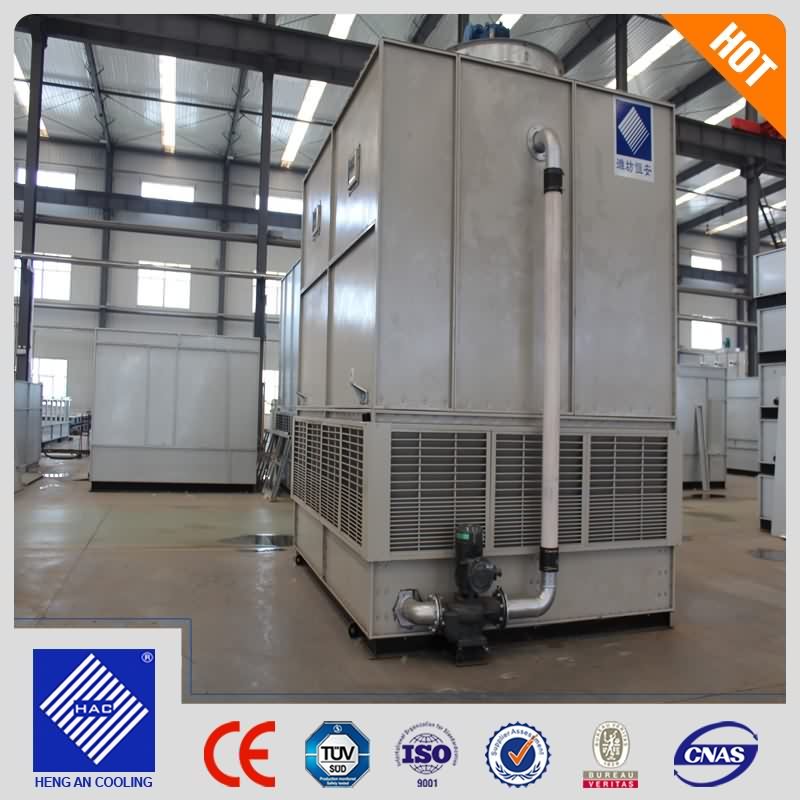

HengAnCooling Water Saving Evaporative Condenser Type Closed Loop Cooling Tower

HengAnCooling Water Saving Evaporative Condenser Type Closed Loop Cooling Tower

Price:

US 3000-5000 / Sets

Min.Order Quantity:

1 Set/Sets

Supply Ability:

2000 Set/Sets per Year

Port:

Qingdao

Place of Origin:

Payment Terms:

Brand:

Products Model:

Products Details
Company Profile

Quick Details

Condition: New
Cooling Type: Counter Flow
Material: Metal
Voltage: 220V/240V/380V/480V
Power(W): 12kw
Dimension(L*W*H): 5610x2200x4350mm
Weight: 7850kg
Certification: ISO9001:2008/CE
Warranty: 12 Months
After-sales Service Provided: Engineers available to service machinery overseas
Product name: Water Saving Evaporative Condenser Type Closed Loop Cooling Tower
Water Pump& Fan: Top Brand, Siemens or WEG
Noise Control: Low speed fan,noise damping
Maintenance: with access door and ladder
Water Fow Loss: Less than 0.005%
Cooling coil material: stainless steel/Hot-Dip Al-Zn Alloy-Coated Steel Sheet
Design Center: HengAn National Heat Exchane Center
Fan Type: Aluminum -alloy axia-flow type
Nozzle material: ABS
Anti-corrosion way: The overall heat invasion zinc

Packaging & Delivery

Packaging Details: 1.Bottom body parts, will packed with plastic film to anti moisture, shipped by 40HQ container shipping. 2.Upper body parts, will packed with plastic film to anti moisture, shipped by 40HQ container. 3.Delibery:35 working days after confirm order and received deposit payment.
Delivery Detail: --

Specifications

Product Description

Product Application

Water Saving Evaporative Condenser Type Closed Loop Cooling Tower

Advantage:

1) No infill designed, more compact structure,lower profile,less installation area required,and easy for transport and installation.

2) Suitable to severe environment as its structure much more close,which could prevent from sand and dust.

3) Suitable to high temperature fluid,because hot spraying water will not distort PVC fill as no PVC fill designed.

4) Freezing resistance,becuase there is no PVC fill to slow down spraying water flow speed.

Detailed Images

Heat Exchange Coil

1,With new coil design, prevent from scaling effectively.
2,Designed with certain slope to facilitate water discharge, reduce pressure drop
3,Design pressure from 0.6Mpa to 35Mpa. Customized according to project requirement.
4,Various material available for selection: HDG steel, Stainless Steel, Red Copper.

FAN

1, China famous brand, customized for closed circuit cooling tower and evaporative condenser.
2, Axial flow type, low power, energy saving.
3, World famous brand motor: Siemens or WEG brand.
4, Voltage customized according to customer project requirement.

Spraying Pump

1, China famous brand, customized for closed circuit cooling tower and evaporative condenser.
2, Low power, low head lift, large water flow volume, energy saving.
3, World famous brand motor: Siemens or WEG brand.
4, Voltage customized according to customer project requirement.

Advanced Water Distribution System

1, Top quality steel sheet, thickness 2.0mm
2,Various material available for selection: Aluminum-Zinc Alloy Steel, Powder Coated
Gl Steel, Stainless Steel
3, Designed with certain slope toward to drainage outlet, facilitate water discharge

Our Service

Pre-Sales Service
* Professional Technical and Sales Service Team
* Techncial Proposal, Various CAD Drawings available
* Welcome to View Our Factory.

After-Sales Service
*Training to how to install and use the machine.
*Engineers available to service machinery overseas.
*Plastic containers and bottles in all shapes.

Packing & Delivery

1.Bottom body parts, will packed with plastic film to anti moisture, shipped by 40HQ container shipping.
2.Upper body parts, will packed with plastic film to anti moisture, shipped by 40HQ container.
3.Delibery:35 working days after confirm order and received deposit payment.

Buyer Feedback

Hot Sell Closed Water Cooling Tower For Chiller

91.8% Response Rate

Heat Exchange Equipment Closed Cooling Water Tower

91.8% Response Rate

Commercial Cooling Tower for Food Industry

91.8% Response Rate

Established in 1975, Heng An has become one of the largest Water radiator ,Oil Cooler,Charge air cooler, closed circuit cooling tower, evaporative condenser and air cooled heat exchanger manufacturers in China. For more than 40 years, we have provided exceptional quality equipment and service to the industrial, refrigeration, power generation, food processing and other industrial areas. Our products are used world-widely including South America, North America, South-east Asia, Oceania, Europe, etc, and have good reputation among the customers.

From standardized production to customization, we provide the professional and wordable solution for every customers, and we exceed our customers’ expectations by delivering the excellent quality products and service.
