Brand Name: CWX
Model Number: CWX
Place of Origin: Tianjin, China (Mainland)
Standard or Nonstandard: Standard
Structure: Ball
Pressure: Medium Pressure
Power: electric
Material: Brass
Temperature of Media: Normal Temperature
Media: Water
Port Size: 1/4’ to 2’
Actuator rotation: 90 degree
Actuator motor: Micro DC motor
Actuator control wirng: 2,3,5 wires/CR01, CR02, CR03, CR04, CR05, CR06
Actuator control Way: on/off,open autimatically when power-off,3-wires control
Actuator enclosure: IP65/IP67
Actuator output torque: 2N.m/6MN/10N.m
Actuator Working Voltage: DC3-6V,AC/DC9-24V,AC85-265V
Liquid temperature: 0-120 Celsius degree

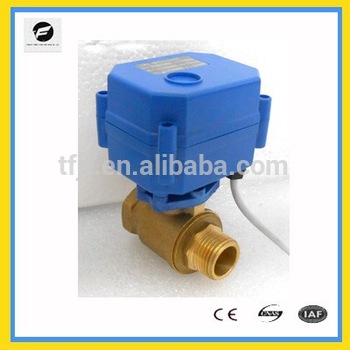

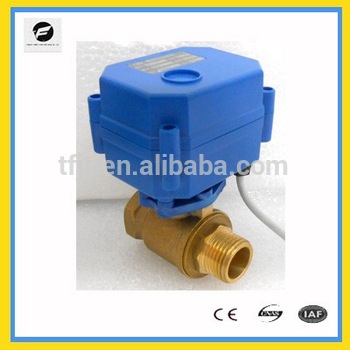

CWX15Q Mini electric actuator control ball valve for water treatment and drain equipment
Description
This listing includes 1 unit of motorized ball valve DN25, 24VDC, 2 way
Application:
1.HVAC 2.Water treatment 3.Chemical process 4.Small equipment for automatic control 5.Replacing solenoid valve, particularly when solenoid cannot work reliably
Features:
1).Smart shape, Perform reliably, large output torque, as long as 50000-100000 times.
multi-angel assembling, convenience for all kinds of requirements.
2).Float ball design, no leak, most suitable for heavy dirt and long time no action.
3).The conditions that solenoid valve can not be worked.
4). Under the pressure between 1Mpa and 2Mpa, the working current is only 45mA to 100mA (it depend on the different type)
5). High protection class, can be worked in moist conditions.
Technical Parameter:
Nominal Size |
Pressure |
Body |
Medium temperature |
Enclosure |
DN25 |
0-1.0Mpa |
Brass ball valve |
-20°C< t <100°C |
IP65 |
Work voltage |
Input power |
Working current |
nominal torque |
Open/Close time |
DC24V |
Max. 4W |
60-80mA |
2N*M |
5 second |
*Wire type: CR01-CR06
