DC3-6V 2-way 1/2

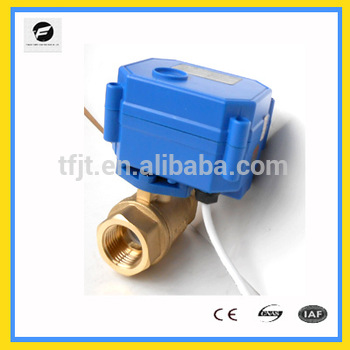

DC3-6V 2-way 1/2" bronze 24V-DC voltage actuator motor on-off valve

FOB Price:
US 12.00 / Piece
Min.Order Quantity:
1 Piece
Port:
--
Place of Origin:
IP65
Payment Terms:
--
Brand:
0-100 Celsius degree
Products Model:
DC3-6V,AC/DC9-24V,AC85-265V
Share:
  • Products Details
  • Company Profile

Quick Details

  • Standard or Nonstandard Standard: Standard

    Standard or Nonstandard: Ball

    Structure Ball: Medium Pressure

  • Structure: electric

    Pressure Medium Pressure: Brass, Nickel plated Brass, 304 Stainless steel

    Pressure: Medium Temperature

  • Power electric: Fluid, Air

    Power: 1/4’ to 1 1/4’

    Material Brass, Nickel plated Brass, 304 Stainless steel: Tianjin, China (Mainland)

  • Material: CWX15N

    Temperature of Media Medium Temperature: CWX

    Temperature of Media: General

  • Media Fluid, Air: 90 degree

    Media: Micro DC motor

    Port Size 1/4’ to 1 1/4’: 2,3,5 wires/CR01, CR02, CR03, CR04, CR05, CR06

  • Port Size: on/off,open autimatically when power-off,3-wires control

    Place of Origin Tianjin, China (Mainland): IP65

    Model Number CWX15N: DC3-6V,AC/DC9-24V,AC85-265V

  • Brand Name CWX: 0-100 Celsius degree

Specifications

DC3-6V 2-way 1/2" bronze 24V-DC voltage   actuator motor on-off valve

Technical parameters:

Size: 1/4 to 11/4 inches
Voltage: 3-6vDC,AC/DC9-24v,220V AC85-265v
Material: stainless steel (304, 316), brass
Open/close time:8-12sec
Working pressure: 1.0 mPa
Torque output: 6NM
Control mode:2,3,5 wires
End:BSP&NPT
Medium temperature: 0-90°C
Actuator rotation: 90 degree
Rotation direction: double acting
Low working current: <80mA
Working medium:water,air,gas.
Product life: 100,000 times
Special function:position indicator;electric-manual
Enclosure:IP65
Main export areas:Europe,Asia,North America, South America,Mid East,Oceania,Africa



Features:

1. Smart shape,perform reliably,brass gear,PPO parts,large output torque,long product life for 100,000 times.

2. Electrical limit and machinery limit design,accurate position,avoid gear with switch.

3. Multi-angle assembling,easy to install.

4. Float ball structure,no leakage,especially suitable for heavy pollution conditions.

5.Good substitution for solenoid or pneumatic valve.

6. High protection class,can be worked in moist conditions. IP65.

Suitable for :

1.IC card meters,heat energy meters,air-warm valve.

2.HVAC and fire works.

3.Water equipment,auto-control watersystem,industrial mini-auto equipment, Small equipment for automatic control

4.Irrigation equipment,drinking water equipment,solar water heaters,washing machines,water heaters,industrial humidifier.

5.Replacing solenoid valve, particularly when solenoid cannot work reliably,the circumstance pneumatic valve can not work.

6.Multiple voltage and control mode, applicable to a variety of occasions.

Other illustration:
Material of main parts:
Actuator: heat-resistant ABS
Sealing: PTFE, silicon rubber ball seat, EPDM and NBR stem seat, NBR o-rings .
Body: brass or stainless steel
Ball: brass or stainless steel
Stem: brass or stainless steel





mini motorized valve, actuated valve, motor operated valve, motor actuated valve, automatic valve, control valve, shut off valve, actuator valve, electric operated valve
